Products, Materials & Tools | Jul 24, 2012

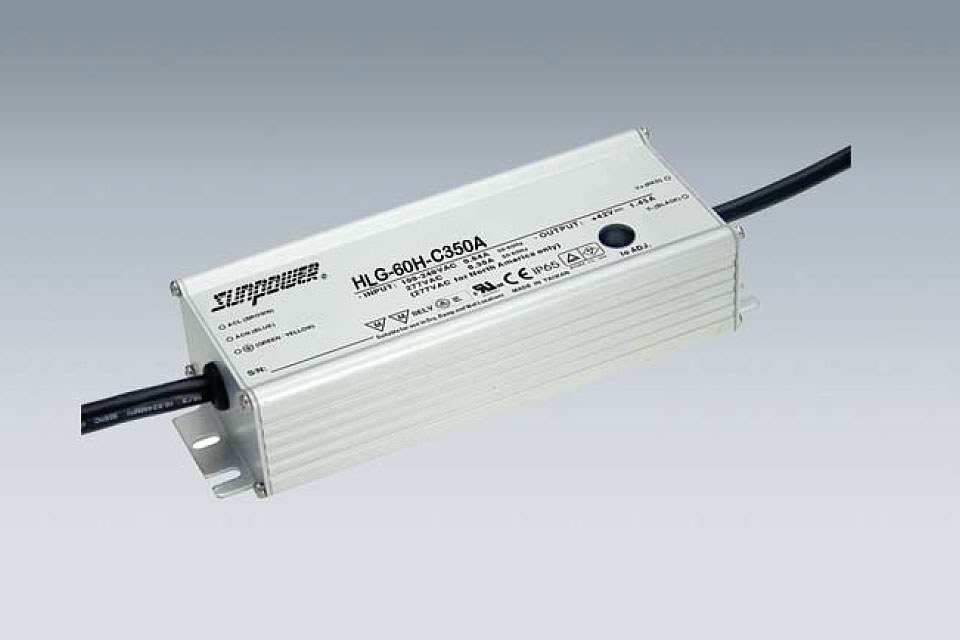

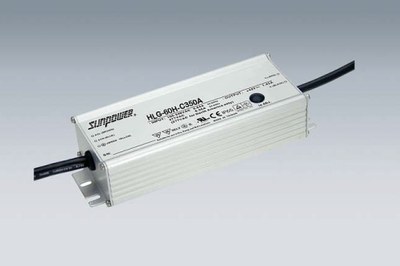

New HLG-60H-C Series70W Single Output IP65/67 Rated Constant Current LED Power Supply

Sunpower are pleased to announce the release of the HLG-60H-C series, a 70W single output LED power supply in constant current mode and available in IP65 and IP67 ratings.

Features:
• Constant current design
• Universal AC input/Full range (Up to 305VAC)
• Built-in active PFC function
• High efficiency up to 91%
• Protections: Short circuit/Over voltage/Over temperature
• Cooling by free air convection
• Ouptut current adjustable through internal potentiometer
IP65 design or IP67 design
• Suitable for dry/damp/wet locations

Applications:
• LED street lighting
• LED tunnel lighting
• LED spot lighting
• LED decorative lighting
• Any other indoor/outdoor LED lighting

Designed to meet the demands of the low to middle wattage lighting applications, the unit offers up to 91% of high efficiency, full range of 90~305VAC and 350mA and 700mA rated constant current outputs.  Complying to the requirements of street lighting the HLG-60H-C series fulfills power factor >0.9 if loading over 50% and possess 4KV surge immunity (EN61000-4-5).

The HLG-60H-C series is metal cased and considers the influence of dust and moisture from harsh environments (IP65/67 rated).  The high operating temperature of -40~+70 °C allows the unit to be cooled by free air convection and installed into closed lighting systems.  Additional functions include protections for short circuit, overload, over voltage and over temperature.
