Home > Components & Tools > Electronics & Smart Controls > New liniLED® Controllers complement the liniLED® System
Products, Materials + Tools | Jun 28, 2013

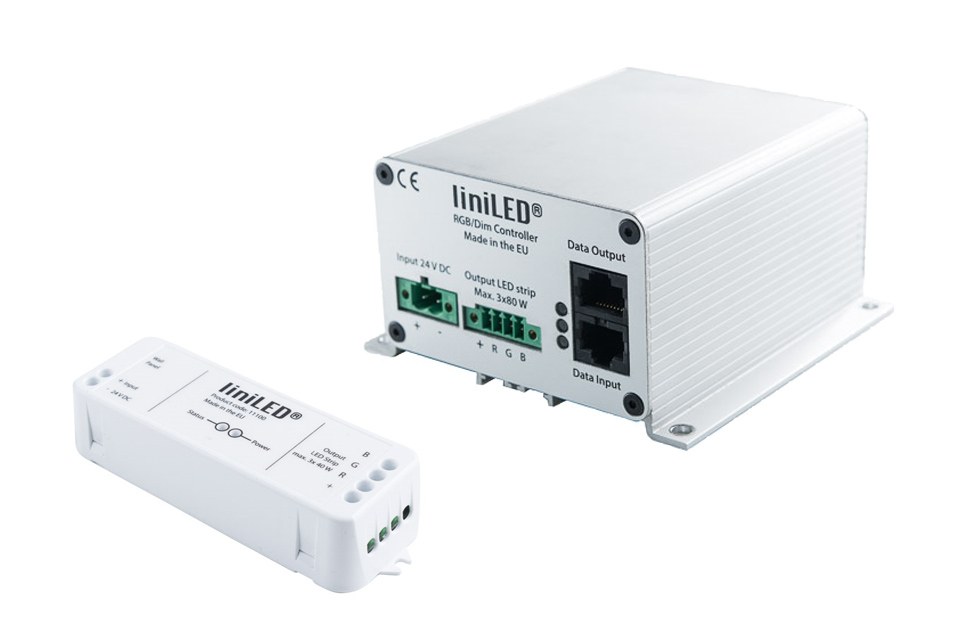

New liniLED® Controllers complement the liniLED® System

Two controllers have been added to our range and replace the old controllers as currently listed in our catalogue on pages 53 and 54. Both controllers are easy to connect to the liniLED® Wall Panel via an RJ45 cable. After connecting, the controllers can immediately be used (Plug & Play).

liniLED® Basic Controller:
With the liniLED® Basic Controller (product code 11100) you have a small but powerful controller with an output of 3 x 40 Watt. The liniLED® Basic Controller is therefore suitable for controlling up to 20 metres liniLED® RGB*. Besides liniLED® RGB, you can dim three groups of monochrome liniLED® products independently. The liniLED®  Basic Controller works together with the liniLED® Wall Panel. It is possible to order them as a set (product code 11101), whereby you will benefit from an additional discount.

liniLED® RGB/Dim Controller:
A more powerful controller is the liniLED® RGB/Dim Controller (product code 11120). With this controller, you have an output of 3 x 80 Watt. Besides connecting three groups monochrome liniLED® products, which dim separately, 40 metres liniLED® RGB* can be controlled. The liniLED® RGB/Dim Controller can be connected to the liniLED® Wall Panel via an RJ45 cable. If there is more power needed to control your liniLED® products, the liniLED® RGB/Dim Controller has the ability to couple the signal to a second liniLED® RGB/Dim Controller (or liniLED® Basic Controller). This way, you can scale the required power to the wattage that is desired. Soon the liniLED® RGB/Dim Controller will also be available in versions for DMX, 0-10 V and 1-10 V.

* The specified number of metres indicates how much of the product can be connected to the controller. Per connection set a maximum of 10 metres for liniLED® RGB Deco applies.

For additional information about the liniLED® Basic Controller please visit http://www.triolight.com/products/liniled-basic-controller/ and for information about the liniLED® RGB/Dim Controller http://www.triolight.com/products/liniled-rgbdim-controller/
