Components | LED Modules | Linear Modules | Indoor Applications | Outdoor Applications | Jan 09, 2019

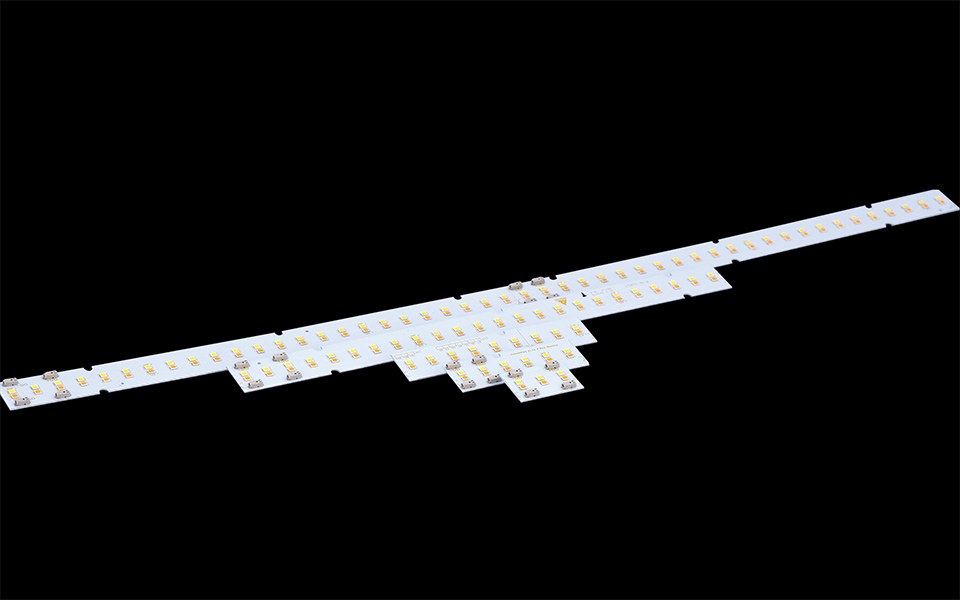

Adura LED Solutions Introduces a Cuttable 4ft Linear Module

Adura LED Solutions, a leading developer and manufacturer of LED lighting modules in Corona, California, is introducing its new platform of linear MCPCB and invites LED lighting fixture companies to experience the best performance Low Cost linear modules.

Product Features:
•    Made-in-California at Adura, a UL Certified Manufacturing Facility
•    COLOR TUNING, 2 CHANNEL, CUTTABLE LINEAR MODULE
•    Linear 47.7 inch long LED module
•    Cuttable at various length (1.5, 3, 4.5, 6, 9, 12, 24, 36 inches)
•    High Efficiency Linear Modules
•    Forward Voltage: 18 V, +/- 1.5 V
•    Typical 2000-2400 lumen/ft
•    Excellent thermal management using Metal Core MCPCB for maximum heat dissipation
•    Tight LED pitch to eliminate pixilation, no complex lens or optics required
•    3 Step MacAdam binning
•    Wide CCT ranging from 2700-6500 K
•    CRI options of 80+, 90+
•    End to end mounting for long linear application
•    Input and Output Poke-in connector for easy wiring
•    LM-80 LEDs, Long life-time: > 50,000 hours
•    Recognized UL PCB and Components

The Adura 12423-A LED white or color linear module designed with people and linear lighting applications in mind. The module is constant current, cuttable at various length and offered with 80+ and 90+ CRI options. With a nominal 18 V forward voltage, long runs are even more achievable at distances specified down to the 1.5 inches.

Specification:

The Linear modules are available in sample or production quantities and can be purchased directly from Adura LED Solutions. Designed and manufactured in Corona, California, the Linear modules are available in three different length.

For more detailed information, please visit aduraled.com/product/led-modules or contact sales@aduraled.com

About Adura LED Solutions:

Our primary business is the manufacturing of custom SinkPAD PCB designs.  We do offer off-the-shelf Star, round, linear, square and other PCBs (Aluminum & Copper) for engineers to take advantage of testing the technology before ordering their custom design thus, reducing initial cost for evaluation as well as shortening design cycle. - www.aduraled.com
