Products, Materials + Tools | Dec 02, 2008

Color Stars Introducing the BOBBY-AR111-WHT and STARSTRIP-24 LED Light Strips

Color Stars, Inc. has launched the 16W BOBBY-AR111-WHT LED lamps and the STARSTRIP-24 Series of RGB and single-color white LED light strips.

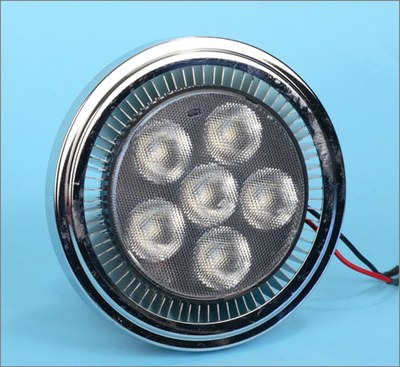

Each BOBBY-AR111-WHT has 6 high-power LEDs with a lumen output of 560 lumens for daylight white and 480 lumens for warm white. The lamps are available in 25 and 40 degree beam angles.

Features:
• High power LED retrofit lamps
• High luminous intensity output
• Min. 70% lumen maintenance after 35,000 hrs
• Higher energy efficiency than incandescent and halogen lamps
• Cool beam (no UV or thermal radiation)

Technical Data:

Product:

BOBBY-AR111-WHT

ELECTRICAL:

LEDs Wattage

6 x High-Power LEDs <16W

Constant Current Driver:

Input Voltage Current Output

90~260Vac 700mA

OPTICAL:

Lumen Output Operating Life Beam Angle (with lens)

WW: 480/WD: 560 >35,000 hrs.
25° / 40°

ENVIRONMENT:

Operation Temperature Storage Temperature Operation Humidity Housing

-20 ~ 50°C -40 ~ 60°C 10 ~ 90% aluminum Fin-Core ™

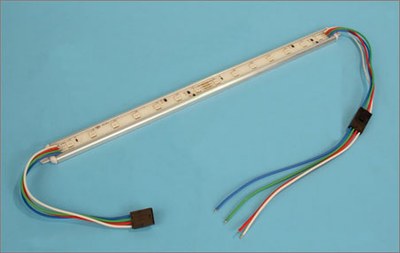

The STARSTRIP-24 Series of RGB and single-color 24V rigid aluminum light strips are available in lengths of 33.6 cm, 63.6 cm, 93.6 cm and 123.6 cm. The STARSTRIP-24-RGB can be controlled by the PAVO-DIAL-DMX Controller.
Features:
• RGB color-changing LED strip
• Wide view angle of up to 120°
• High brightness and long operating life
• Low energy consumption
• Common anode configuration
• Maximum length can be extended using the SS-COUPLER

Technical Data:

Product:

STARSTRIP ™ -24-RGB

LED Type:

SMD RGB LED

Input Voltage:

24VDC

LED Luminous Intensity (Typ.):

R: 430mcd; G: 1000mcd; B: 230mcd

Emitting Color & Wavelength:

R: 622~630nm; G: 524~532nm;
B: 464~472nm

Max. Watts/Unit:

3.4W

LED Quantity/Unit:

14 pcs

Unit Length:

33.6 cm

LED Spacing:

21.4 mm

Dimensions:

336mm x 21 mm X 9mm

Beam Angle (Typ.):

120°

Color:

Any color available with RGB color mixing

Controller Model:

PAVO-DIAL-DMX

Max. units connected together:

45 units with the PAVO-DIAL-DMX Controller

Operation Temperature:

-20°C ~ 80°C

Power Supply:
(Power Consumption for each meter = 10.2W)

15M: 153W/24VDC


About Color Stars, Inc.:
Color Stars, Inc. is part of the ColorStars Group with headquarters in Bay City, Michigan, U.S.A. Its research and development and manufacturing is located in Taipei and Kaohsiung, Taiwan where it is surrounded by an unprecedented infrastructure of high-tech semiconductor industries that are among the most advanced and fastest-growing companies in the world.

Color Stars is possibly the most vertically integrated company in the LED lighting industry – incorporating downstream applications with upstream LED packaging.  Its LED lighting application development activity ranges from lighting fixture design to optical lens and heat management, from color-changing systems to multiple-chip RGB packaging, and from white and warm-white LED packaging to special packaging methods designed for general lighting applications.
