Products, Materials & Tools | Mar 15, 2012

Coming Soon! LUMAERA-50-RP

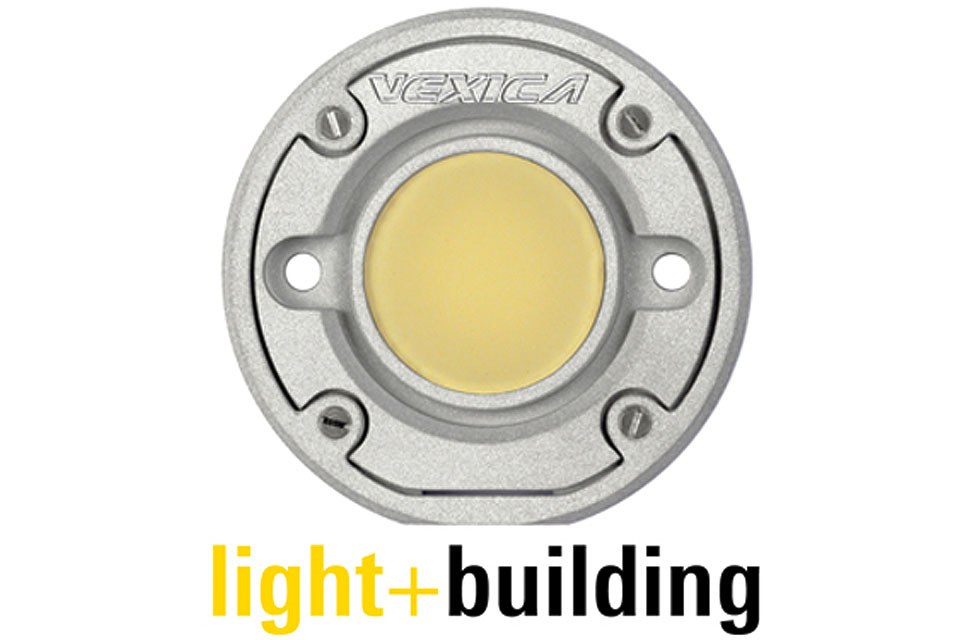

Vexica Technology have announced the launch of a new OEM LUMAERA LED module. The latest LUMAERA-50-RP is a 50mm diameter LED module for integration into OEM luminaires. The new LUMAERA-50-RP module gives luminaire manufacturers versatile LED solutions without the associated research and development costs in a form factor that is rapidly becoming the industry standard for small led light engines.

• LED down lights
• LED track lights
• LED spot lights

Key features:
• 50 mm diameter with 35 mm fixing centres
• 22.5 mm glass aperture
• Robust Die cast aluminum package
• 4-Way easy interconnect for remote LED drivers
• Single LED connectivity for external emergency driver option
• Remote Phosphor colour conversion for high CRI options
• Lumen packages of 600 Lm and 1200 Lm output

Electrical Data

LED Drive Current (MA) 350-700 Driver Type Constant current
Connections 4 way wire harness Power (Watts) 8-15
Input Voltage
Operating Temperature TBC

Optical Data

CRI 80, 90, 95 min Number of LEDs
Beam Angle (Degrees) Lambertian LED Type Royal Blue + Remote Phosphor
Expected Lifetime (Hrs) 50K LED Colour

Mechanical Data

Dimensions See datasheet drawings Weight (KG) TBC
Ingress Protection 20 Finishes Available

The LED module is designed around the latest industry standards.  LUMAERA uses proprietary technology and remote phosphor conversion providing both efficient and colour consistency of light engines. The LUMAERA-50-RP module uses the latest in LED technology.  This 50mm modue is designed to be integrated into LED down lights and other lighting products.  The LUMAERA-50-RP uses an external LED driver and requires a secondary heat sink. (Available upon request) A 4-way connector provides the main feed to the module and additional connectivity for external emergency lighting controls.

In addition to this a range of local phosphor versions are due to be launched soon offering between 2000 and 5000 lumens packages in Q2 2012. Vexica Technology is also offering an OEM heat sink for the newly launched LUMAERA module with details to follow shortly.

Vexica will be demonstrating its module capabilities at the Light & Building trade show in Frankfurt, Germany, April 15th – 20th 2012 at the Intematix and Cerflex booths in Hall 4, stands A86 & E19a.

About Vexica Technology:
Vexica Technology are experts in the design and delivery of energy efficient LED lighting solutions. We have a wealth of experience developing LED lighting products for OEM’s and special projects.
We strongly believe that today’s LED component technology, partnered with our expertise, can provide a sustainable and cost effective method of general purpose lighting for years to come.
Whilst white light is a key growth and development area for us, we also have a passion developing custom solutions alongside our clients. You will see from our core competencies that we have all the necessary skills to take a concept and turn it into a quality manufactured product that meets a project requirement.
Our team compromises of key individuals with a wealth of knowledge from within the LED lighting industry and beyond. The size of our team allows us to be flexible and reactive to our clients needs.
