Products, Materials + Tools | Jun 23, 2010

Edison Opto Announces Four Types Of Streetlight Modules

Edison Opto offers four types of streetlight module for various requirements. As the application with LED streetlight module gradually becomes a global trend, Edison Opto has introduced four LED streetlight modules satisfying various roadway requirements.

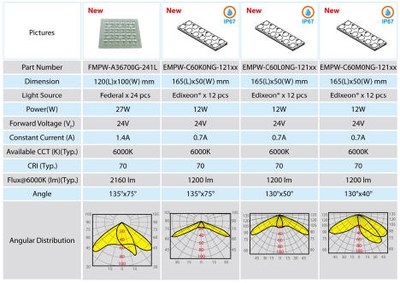

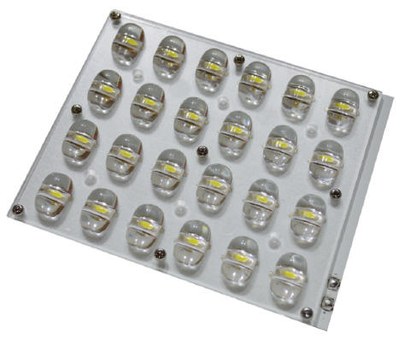

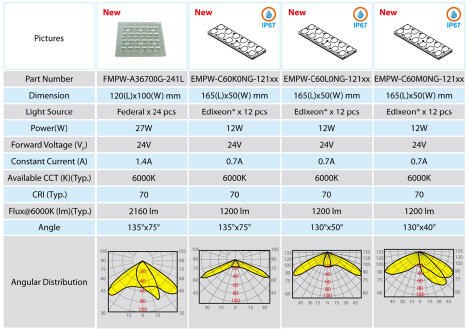

Featuring 12W Edixeon module with three choices of optical pattern:135°×50 ° and 130°×40°. Utilizing high thermally conductive metal core PCB, the secondary lens is coupled with IP-68 capability. Besides the Edixeon module, the 27-watt Federal module is composed of 24 high-power Federal components, with lumen output up to 2,160lm. The asymmetric lens design for Federal module offers an alternate choice for high power streetlight modules.

With the government’s policies, there are variable standards are made for streetlight. Most standards strictly regulate the road width, the height of streetlight, CRI and the average luminance. Edison Opto utilizes high efficient multiple non-spherical lens design to achieve different beam patterns and use asymmetric light output to minimize glare. This lens technology can be applied to all kinds of LED lights or traffic lighting and other non-symmetrical illumination for multiple applications.

Edison Opto can accommodate and customize different specifications to meet various demands. For more information on featured street lighting modules, please visit: http://www.edison-opto.com.tw/Flash/StreetLight_WebTemp.html

About Edison Opto
Edison Opto is a leading high power LED manufacturer and a solution provider experienced in optical design and thermal management for the emerging SSL market. With R&D headquarter in Taiwan, production capabilities in Dong Guan, China, as well as distribution network over twenty-six countries, Edison Opto offers a diverse range of high power LED products to worldwide commercial, industrial, retail, and residential markets.
For more information, visit www.edison-opto.com.tw

Contact
Jill Hsu, Marketing Planning Specialist
Edison Opto Corporation
Tel +886 2-8227-6996 Ext.8802
Fax +886 2-8227-6993
E-mail: jillhsu@edison-opto.com.tw
Web Site: www.edison-opto.com.tw
