Products, Materials & Tools | Jul 30, 2013

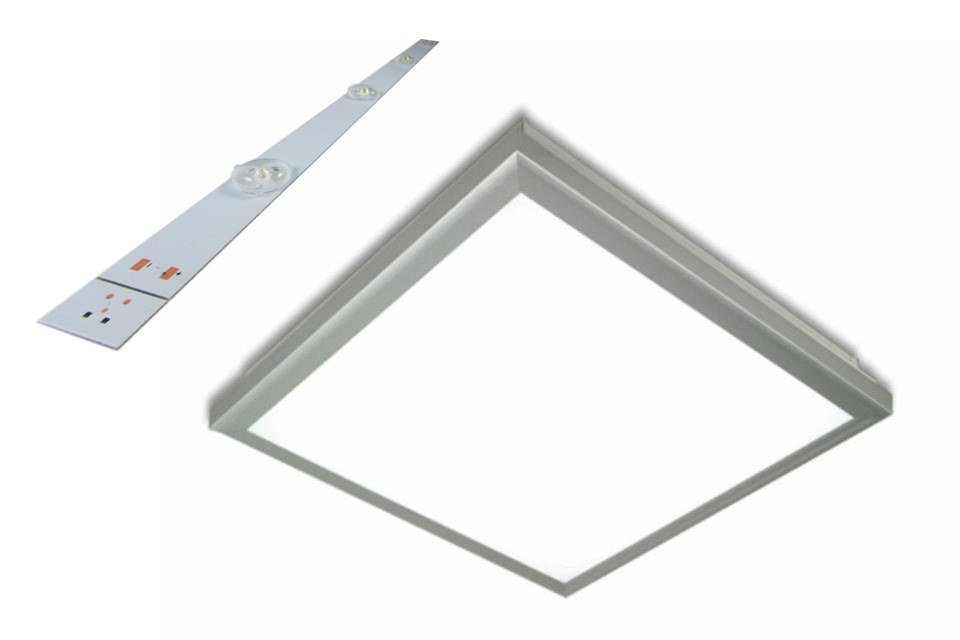

Edison Opto Unveils Direct-Lit Light Bar for Lighting and Backlight Applications

The Taiwan-based high power LED manufacturer, Edison Opto, has recently branched out into backlight market and released a direct-lit backlight / lighting module. Using the high efficacy component - ET-3528 as light source with secondary optical lens, the emitting angle of light bar can be widened up to 150°which expands the illumination range. In addition, thanks to the excellent light uniformity, naked eyes can’t see the light source even when the light bar is mounted in an ultra-thin light box. The direct-lit light bar is suitable as the light sources of panel lights, TV backlight, advertising light box and refrigerated display case.

Specification:
LED Quantity:    7 pcs/light bar
Dimension:        520 mm x 17 mm x 1 mm
Power:               7 W
Brightness:         700 lm / 670lm / 640lm
CCT:                  6000 K/4000K/3000K
CRI:                   80
Efficacy:            100 lm/W

Compared with the side-lit LED TVs which require light guide plates, direct-lit LED TVs do not need such components. Moreover, LED efficacy has been increasing so that the quantity of LEDs per TV can be reduced. Edison Opto’s direct-lit light bar has the advantages of high lm/$ and cost saving which are superior to side-lit LED module.

Direct-lit light bar applied in advertising light box and panel light can save (up to) 30% power consumption. Whether as a lighting application or backlight, the direct-lit light bar can help luminaires and TVs to become lighter and thinner. The light bar is a versatile, efficient and energy saving solution for lighting and backlight.

More Information about the company and our products can be found at www.edison-opto.com

About Edison Opto:

Edison Opto has established the headquarters in New Taipei City, Taiwan since 2001. Edison Opto is specialized in designing and producing High-power LEDs. In order to satisfy customers’ high standard requests for quality, Edison Opto established a LM80 approved laboratory which is certified by Underwriters Laboratories (UL). Edison Opto creates the LDMS service program which can provide customized professional design and production services. Edison Opto has established factories in Dongguan and Yangzhou. Besides, in order to expand the service domain, Edison Opto has established subsidiaries in USA and Germany. Edison Opto provides customers with complete product support and prompt delivery services.
