Featured | Products, Materials & Tools | Feb 02, 2016

Lumileds Adds High Efficacy Outdoor Module to Matrix Platform

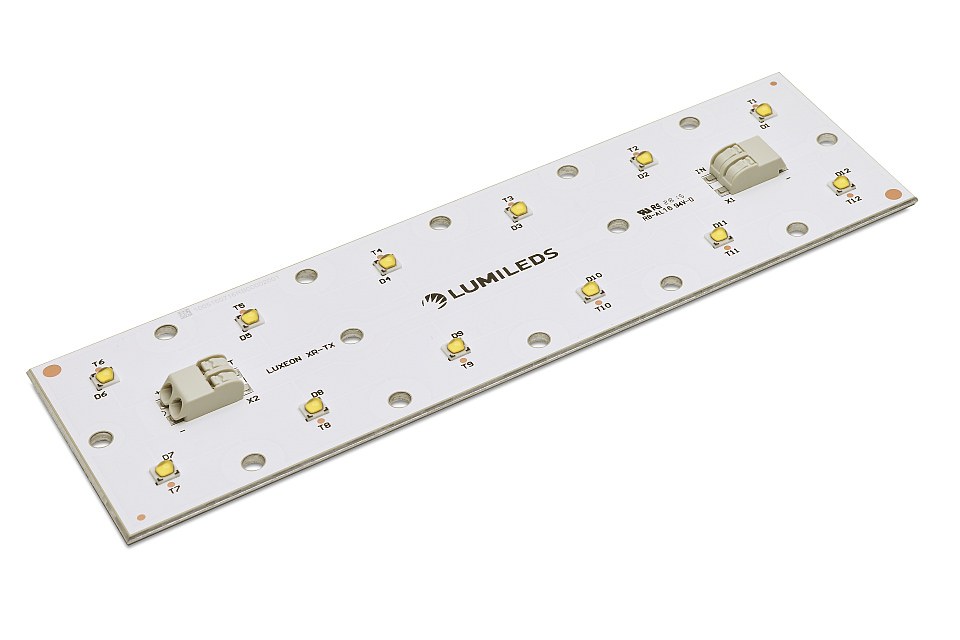

Today Lumileds introduces the new Luxeon XR-TX module, incorporating 12 Luxeon TX high-efficacy LEDs to produce 3300 lumens and 140 lm/W at nominal drive conditions*. In a convenient rigid form factor, the modules are designed to be readily combined with third party lens plates and drivers to rapidly design and bring to market LED streetlights, tunnel lights and high/low bay fixtures. “Our Matrix Platform products eliminate the sourcing of LEDs, components, and connectors, and drastically reduces the design efforts behind luminaire development,” explained Andrew Cohen, Product Manager of the Matrix Platform at Lumileds.

A further advantage to lighting manufacturers lies in Lumileds assembly process. “Using our proprietary pick-and-place system, customers can be assured of exact flux, forward voltage and color specifications at the board level, compared to designing with individual LEDs, where accounting for variability is a greater challenge,” noted Cohen.

The Luxeon XR-TX modules are available in a variety of color temperatures ideal for streetlight and high/low bay applications: 4000 K, 5000 K and 5700 K with a minimum CRI of 70. Each module features a metal-core PCB for best-in-class thermal conduction, screw holes for ease of mounting to heat sinks, and convenient poke-in connectors for electrical inputs. Multiple Luxeon XR-TX modules (up to seven) may be daisy chained to achieve an assortment of system configurations and necessary flux levels.

This new module is part of the Lumileds Matrix Platform of infinitely configurable LED boards, linear flex and modules featuring Luxeon LEDs. The Matrix Platform comes in both off-the-shelf and built-to-spec options, offering a virtually limitless range of solutions for any application.

For more information on the Luxeon XR-TX modules, see www.lumileds.com/LUXEONXRTX

*At nominal drive current of 700mA, 85°C board temperature, and 4000 K / 80 CRI color. Boards can be driven at up to 1.05 A.

About Lumileds:

Lumileds is the global leader in light engine technology. The company develops, manufactures and distributes groundbreaking LEDs and automotive lighting products that shatter the status quo and help customers gain and maintain a competitive edge. With a rich history of industry “firsts,” Lumileds is uniquely positioned to deliver lighting advancements well into the future by maintaining an unwavering focus on quality, innovation and reliability.
To learn more about our portfolio of light engines, visit lumileds.com
