New Edison Opto 27W & 100W Modules Target Street Lighting

As major cities worldwide have initiated green lighting by replacing local street lights with LED light source for the benefit of energy-saving, Edison Opto has introduced 27W and 100W modules tailored for street lighting application.

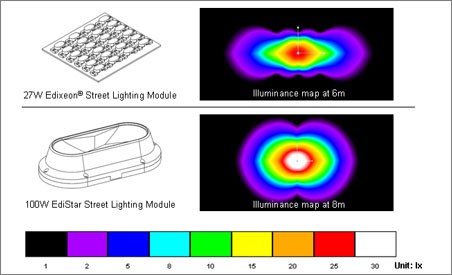

The 27W street lighting module consists of 24 high power Edixeon LEDs, each equipped with a proprietary elliptical secondary lens, achieving a luminous efficacy up to 83lm/W. The LEDs are mounted on a metal core PCB (121x135mm) for easy assembly.  The 100W street lighting modules featuring 6,500lm Ultra high power EdiStar series, comes with a reflector designed at 120°x70° beam spread. The module has a 270x140mm base for affixing to heat-sink or fixture (refer to Figure 1).  Depending on the mounting height, the street lighting modules can be placed in array, satisfying various roadway requirements.

About Edison Opto:
Edison Opto is a leading high power LED manufacturer and a solution provider experienced in optical design and thermal management for the emerging SSL market. With R&D headquarter in Taiwan, production capabilities in Dong Guan, China, as well as distribution network over twenty-six countries, Edison Opto offers a diverse range of high power LED products to worldwide commercial, industrial, retail, and residential markets. For more information, visit www.edison-opto.com.tw.
