Signcomplex ArchiFlex™ Outdoor LED Ribbon Light

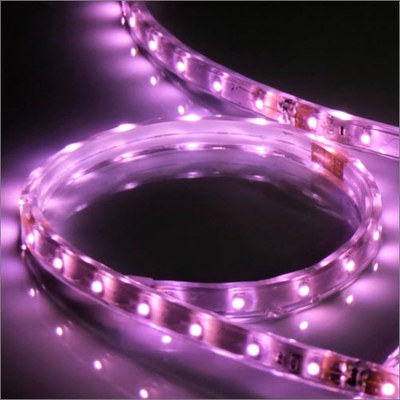

ArchiFlex™ is a combination of SMD LEDs and extrusion technology. The SMD (Surface Mounted Diode) print – the print plate on which the LEDs have been assembled directly - has been enveloped with a transparent, UV/IR-protected PVC housing. The result is a high-quality product with which you can create colorful and amazing linear light accents. It is a very efficient and multi-purpose solution for various architectural in- and outdoor applications.

Properties:
• Flexible linear lighting
• Very clear SMD LEDs
• Low energy consumption and high light yield
• Protected against humidity: IP66
• Available in different fixed colours and RGB
• No maintenance and durable
• Minimal heat generation
• Long extension leads
• Possibilities to shorten, connect and roll
• Extremely functional and multi-purpose
• Dimmable
• Accessories included

ArchiFlex™ is available in 6 different fixed colours (amber, red, green, blue, white, warm white) and RGB. With the RGB-edition you can mix fascinating colours and with diverse light programs and fixed colour adjustments you can determine the exact colour and atmosphere. The bespoke lining of the fixed colours (6x12mm) differs from the RGB (11x17mm). Special connection and fitting material has been developed for both measures.

Beside the different sizes, the power (fixed colour: 3.6W/m, RGB: 7.2W/m) and the maximum connecting length also differ. Apart from that, nearly all technical specifications are the same. Both strips have a LED-distance of 23.8 mm and it is possible to shorten them every 16.6 cm (equal to 7 LEDs).

About Signcomplex Ltd.:
Signcomplex Limited was founded in 2006, certified with ISO9001:2000 management system. It has 180 employees currently and fabrication area 6,000 square meters. Advanced and professional equipments are utilized to aid LED assemblies of LED strips, array and various luminaire. The equipments include SMT assembly, auto soldering lines, opto-electrical test devices, light and optical distribution analysis devices. The well trained production and QC staff can assure all the lights perfect performance. All the products are CE certified and RoHs compliant. Signcomplex has become the biggest supplier of LED strips and a most trustable supplier of LED luminaire.
