Products, Materials & Tools | Dec 06, 2011

Vexica Technology Annonces New LED Module with up to 2000lm

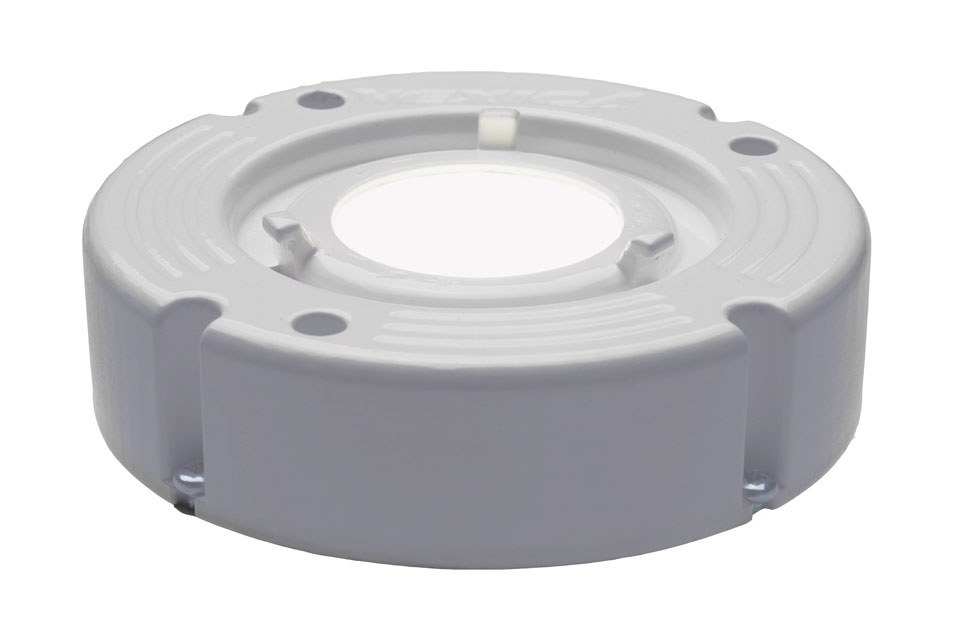

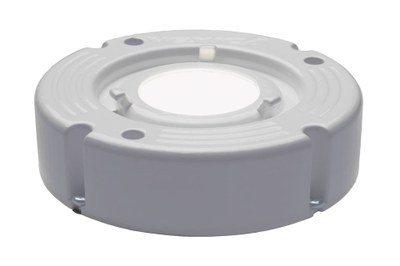

The new Lumaera OEM LED module offers manufacturers unparalleled ease of integration of LED technology. Offered in 1200 and 2000 lumen packages, this new LED module has an interface for a twist and clip AR111 form factor reflector allowing easy selection and changes of optical distribution patterns without the need for specialist tools. It includes a TRIAC dimmable lED driver and a dedicated heat sink ia available too. This allows the OEM manufacturers to offer clients considerable savings on both energy and maintenance with a cost effective luminaire solution.

The Lumaera module has the following key features:
• On-board TRIAC mains dimming driver
• 95 mm diameter OEM heat sink
• Optional silent active heat-sink cooling
• 111mm twist and clip on reflector
• Remote Phosphor colour conversion for high CRI options
• 1200 and 2000 Lumen options (high versions due Q2 2012)

Unrivalled light output is achieved using the latest LED technology and Vexica's highly efficient TRIAC dimming integrated driver. High CRI options are available providing rendering indexes over 90 achieved via Vexica's proprietary mixing chamber and Intematix remote phosphor technologies.

Vexica have integrated the very latest CREE XT-E LEDs specifically tuned for use with remote phosphor systems. White diffuser LED versions are also available using a range of high power LEDs where customers demand a more cost sensitive version but still want high levels of efficiency. We are able to incorporate your LED of choice if you have an affinity or preference for a certain brand.

Our LED driver design delivers smooth mains dimming via TRIAC control systems with high efficiency. For ease of installation and wiring, a push fit mains connector is integrated as part of the module with cable clamping.

Vexica also offer a die cast aluminium heat-sink with optional silent active cooling designed specifically for the LUMAERA to allow OEMs complete peace of mind when it comes to the all-important issue of thermal management.

Available as a complete kit including module, heat-sink and reflector, or as individual components it couldn't be easier or more cost effective to join the LED revolution!
