Featured | Products, Materials & Tools | Apr 21, 2016

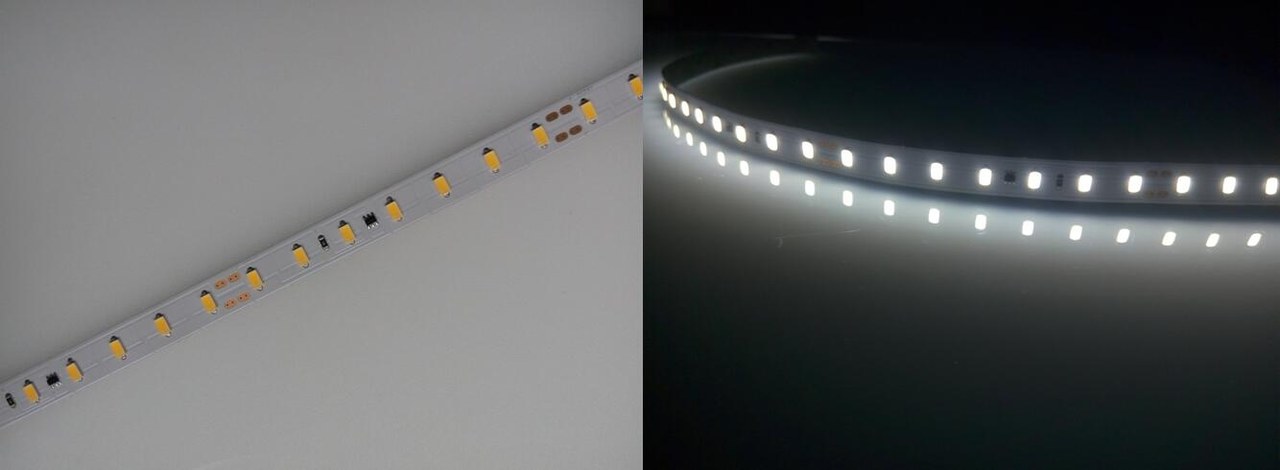

WILLIGHTING Releases Super Bright Flexible SMD5630 LED Strip with CE

Willighting releases a new and super bright flexible SMD5630 strip. With constant current Infineon IC driver, the leds’ brightness will be higher, about 3400lm/m in white and won’t be changed anything when the input voltage changes a little. What’s more, CE and 3 years warranty ensure high quality. Besides, the PCB could be with gold-layer to avoid any oxidation.

Features:
*High-performance silicon for extremely long life and flexibility
*Constant current IC driver: Infineon BCR401U
*Uniform color
*Cuttable
*Universally applicable mounting profile for single or double-sided light boxes
*Super brightness
*With 3M tape

Data:
The width of the led strip is 12MM.
35pcs of 50cm length led strips for 5m per roll.
70pcs of leds per meter.

Optical Parameter:
Votlage: 24VDC
Wattage: 24W/M
Viewing angle: 120°

Item No

Color

Lumen

CRI

CCT

WL-F24V-70-W-5630

White

3400LM

>80

6000K

WL-F24V-70-NW-5630

Nature white

3400LM

>80

4000K

WL-F24V-70-WW-5630

Warm white

3100LM

>80

3200K

About Willighting:
Willighting is mainly a Led lighting manufacturer which is specialized in researching, developing, engineering, marketing of the led products, founded in 2007. Our products cover a wide range, such as Led Tubes, LED panels, High power led series Strips, LED Bulbs, Modules, OEM etc. Willighting is now looking to expand distribution into several other major markets around the world. For more information visit Willighting online at http://www.willighting.com,
Email: sales@willighting.com

Skype: dunyzhong
MSN: dunyzhong@msn.com
Tel: 86-755-27649769
