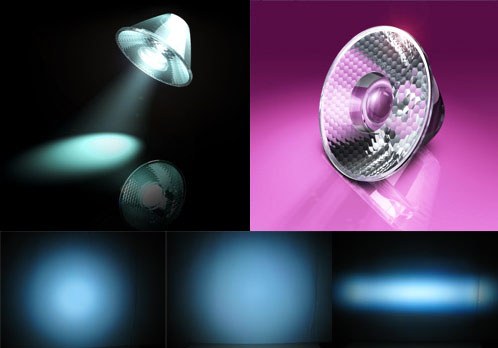

Gaggione Develops 45 mm Color Mixing Collimators (LLC29 range) for OSTAR SMT

The highly efficient product line of 45mm diameter collimators provides excellent color mixing properties to address stage lighting, entertainment lighting architectural lighting application, and other applications looking for power and intensity with excellent cut-off and light efficiencies.

Fields of Application:
• Stage lighting
• Entertainment lighting
• Architectural lighting
• Floodlight for shop lighting
• Scientific/Instrumentation
• Signaling/Industrial

Benefits:
• Light output efficiency up to 90%
• Excellent color mixing property
• Sharp cut off with very narrow beam available
• Additional versions offer range of angles including Elliptical planned
• ZOOM alternative with secondary lens

The result of intense collaboration between LED lighting optical designers and some of the most experienced mold makers and plastics engineers in the business succeeded to reach 2x3,7° FWHM beam angle with the OSTAR SMT while guaranteeing a very uniform color mixing and high light output ratio of 90% Several beams are available : 7.5°, 21°, 35°, 7.5°x37° as well as a ZOOMABLE system to offer further functionalities.

The specification of achieving a highly efficient narrow beam is a technical challenge requiring Gaggione to produce a collimator 45mm in diameter, demonstrating unique experience injecting thick polymer optics.

This 45mm series in the LEDNLIGHT product-line, is the unique answer for lighting fixture designers using OSTAR SMT and looking for powerful multicolor light concentration.
