LEDiL Introduces Family of Reflectors for Zhaga-Compliant Connectors

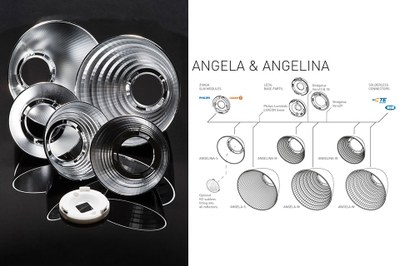

Meet ANGELA and her little sister ANGELINA - two new families of reflectors for Zhaga-compliant solderless connectors. Optimized for performance they provide comprehensive support for the widest range of COB’s from more than ten manufacturers including Bridgelux, Citizen, Cree, Nichia, Osram, Philips Lumileds and Sharp.

In developing the new 120 mm diameter ANGELA, special attention was given to performance. This can be seen in the spot version that is optimized to provide a well defined beam pattern and highest possible center beam candle power (CBCP). The smaller 85 mm diameter ANGELINA provides beam characteristics typical for downlights and general lighting.

ANGELINA and ANGELINA families represent the finest example of LEDiL’s system reflectors philosophy - one design, endless possibilities.

Both reflector families have two variants, one with mechanical interface compatible with connectors from TE Connectivity and LEDiL clamps for Luxeon Sxxxx series COB's. Other version indicated with a -B in the product code is compatible with BJB's connectors.

Both reflector families belong to LEDiL's line of interchangeable connectors. Common mechanical interface with largest of the connector manufacturers streamlines R&D and allows faster product to market cycles. LEDiL is working actively in collaboration with companies providing connectivity and thermal managing solutions to bring benefits of the full ecosystem to the customers.

Visit LEDiL at for more information

About LEDiL:
The only true specialist in the field of secondary optics for high-power and lighting-class LEDs, LEDiL has been producing precision-engineered optics and reflectors since 2002 and now boasts over 1500 standard products optimized for use with LEDs produced by the world’s prominent LED manufacturers.
Custom solutions are also commonly developed with minimal end-user tooling investment required. With production in Finland and China and a global network of authorized distributors, LEDiL’s products are market-competitive and readily available.
LEDiL – turning light into lighting.
