STOCK & SHOP Lenses from Khatod: Nice to Meet You! I Am The Perfect Match for Mid-Power LEDs

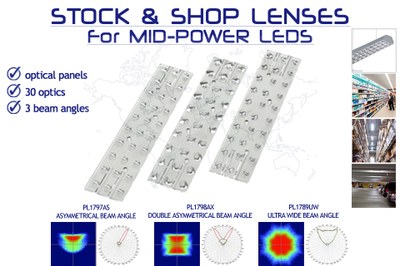

30-Optic Arrays designed for Mid-Power LEDs. Available in different beam angles, among which the double-asymmetrical beam is perfect for lighting double-shelf-aisle areas: performs uniform double-sided beam while avoiding the glare effect in the middle of the aisle. Ideal for Industrial, Commercial and Office spaces that increasingly require solutions able to guarantee high efficiency, energy saving, total respect for the environment and safety rules.

General Characteristics:
• High Precision Injection Molded Optical Panels
• Designed for most popular Mid-Power LEDs
• Can be used in existing light fixtures: remove the old installation and replace it with Stock & Shop Lenses
• Allow easy conversion from old conventional fluorescent lamp technology to LED lighting technology

Features:
• Optic Type: rectangular lens arrays with 30 lenses
• Material: PMMA lenses
• Dimensions: 62.00 mm (w) x 279.40 mm (l) x 11/13 mm (h)
• Beam angles: Ultra Wide, Asymmetrical, Double-Asymmetrical
• Lighting efficiency:  over 85%
• On request, available with PCB for testing

Typical Applications:
Any application in Wide Area Lighting: Industrial Areas, Offices, Warehouses, Retail Shops, Malls, Supermarkets, Outlets, Showrooms, Libraries, Covered Parking, etc.

Optical panels made of 30 optics, designed for most popular Mid-Power LEDs. Excellent optical solution for lighting systems used in rooms with high ceilings and industrial frame. Perfectly meet the requirements for applications that need high-efficiency lighting while being energy efficient. Deliver the exclusive opportunity to replace easily the conventional lenses in existing light fixtures. Available in 3 beam angles, provide uniform light distribution. The double asymmetrical beam fits perfectly into aisle-structured areas with shelving on both sides of the aisles: performs uniform double sided beam while avoiding the glare effect in the middle of the aisle.

http://www.khatod.com/Khatod/Page.aspx?stock_and_shop_lenses

About Khatod:
Khatod products leverage nearly three decades of hands-on experience with the toughest challenges in making lenses in a wide range of applications and environments. Our ability in designing and manufacturing customized optics for LED Lighting is already history. Khatod is able to meet the expectations of the most demanding individuals looking for the latest in LED Technology: exclusive products, cutting-edge engineering, research and experimentation. The result is the highest in technology, the easiest in usability, the most cost-effective in business.
