Labsphere Introduces New LED Measurement Systems

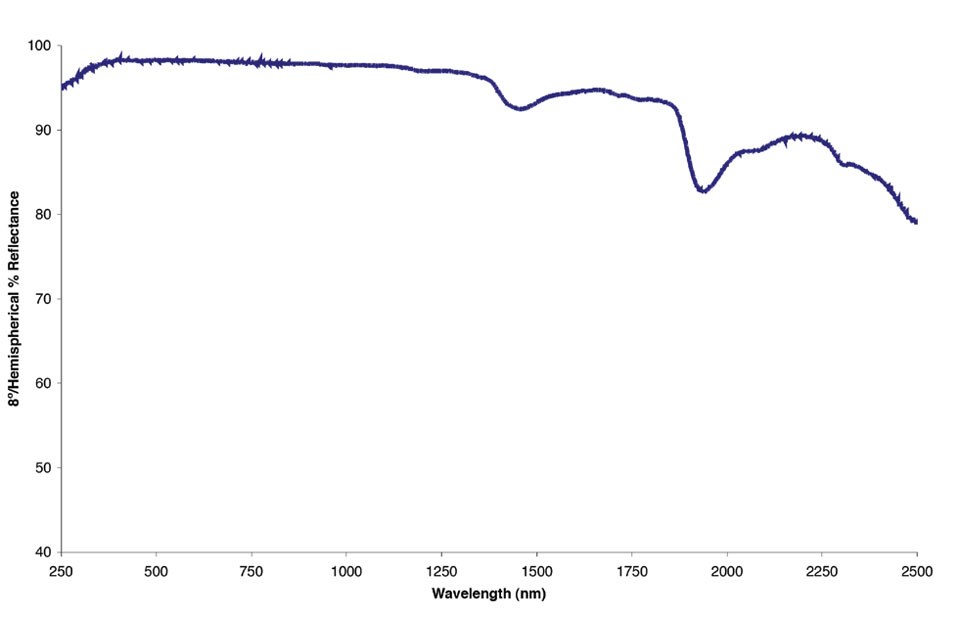

Labsphere announces its new XSLMS series light measurement systems which features extended dynamic range for different wavelength ranges and a broad variety of interchangeable light measurement accessories. NIST traceable total spectral flux standards enable simple in-house system recalibration and verification of the system. Spheres with diameters from 10 inch to 3m with a nearly perfect Lambertian reflection of 98% are available.

Main Features:

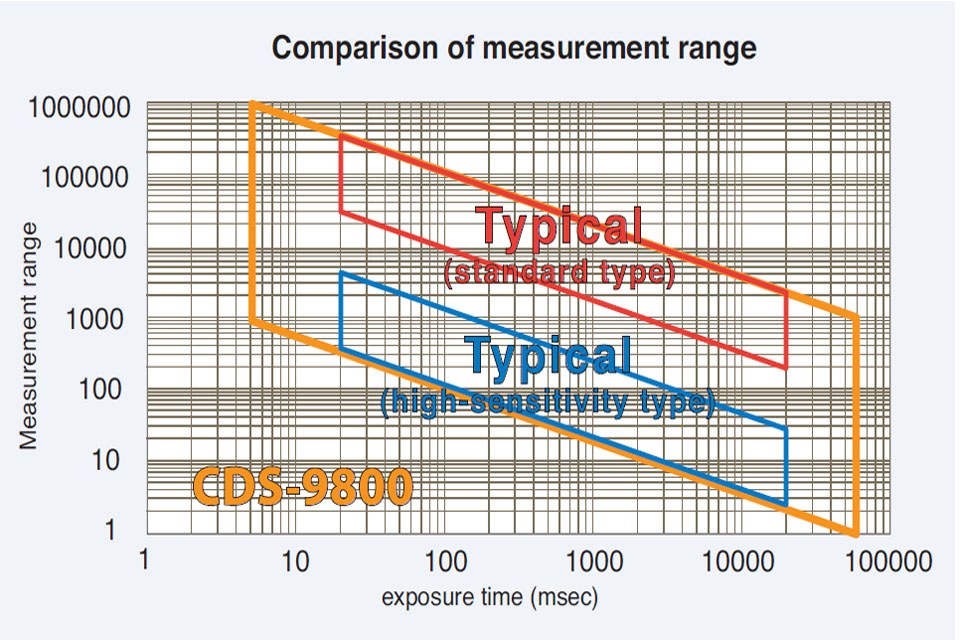

Wide dynamic range allows a single sphere to measure a wide range of light levels
NIST traceable standards for in-house recalibration
Spectral results in milliseconds
Comprehensive light measurement software
• Total spectral flux
• Luminous flux
• Radiant flux
• Chromaticity
• CCT
• CRI
• Peak wavelength
• Dominant wavelength
• I,V and luminous efficiency
Spectraflect® interior sphere coating
IESNA recommended geometries

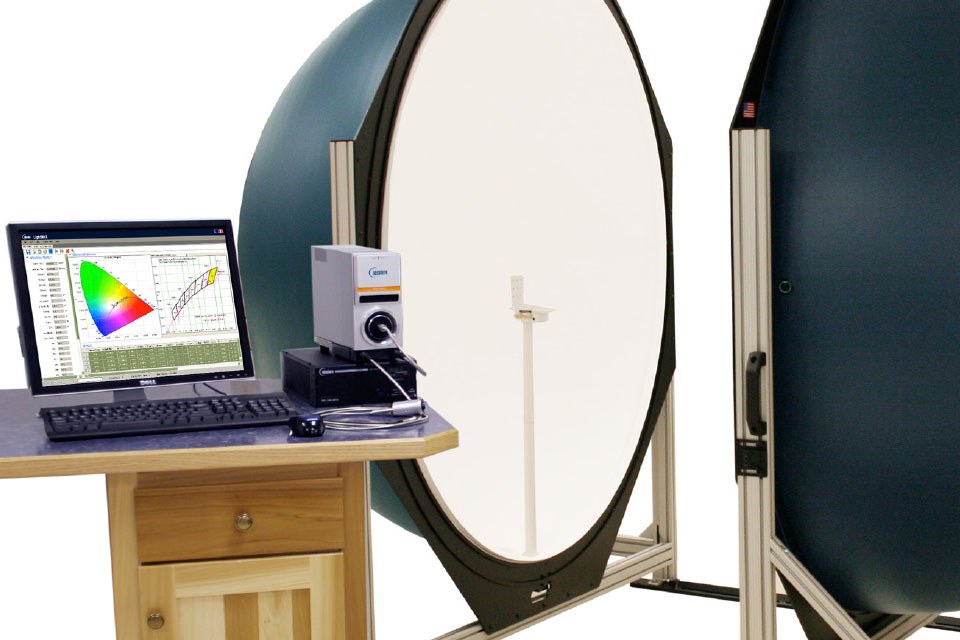

The XSLMS series systems combine intuitive software with high-speed hardware to simplify complex measurements. The coupling of application specific software with our CDS-9800 Series CCD-based spectrometers, integrating sphere, and cosine receiver makes it possible to deliver total spectral flux, luminous flux, radiometric flux, and colorimetric results in milliseconds.

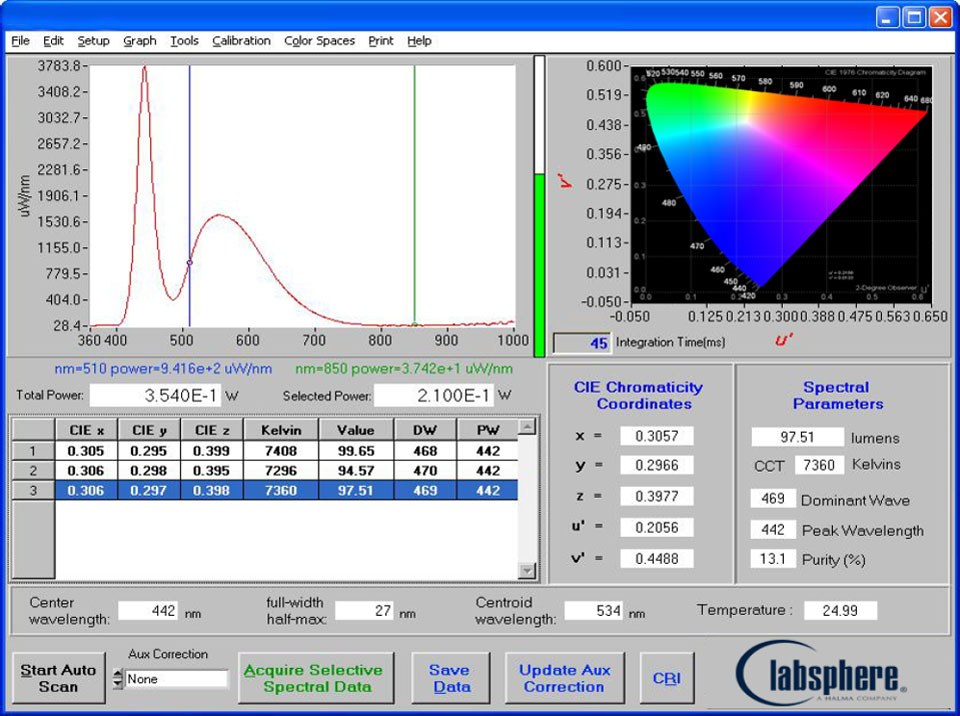

The Windows®-based XSLMS-SPEC software guides users through testing, providing straight-forward testing procedures and repeatable results to meet the needs of both new users and experienced researchers.

About Labsphere:
Labsphere, a Halma company, is a world leading designer and manufacturer of precision radiometric and photometric test and measurement products addressing the specific needs of the aerospace, electronic imaging, LED, lighting, medical imaging and optics industries. The company offers a broad line of integrating sphere systems, uniform calibration sources, spectroscopy accessories and diffuse reflectance materials and coatings.
