Products, Materials + Tools | May 14, 2009

Mounting Tape Provides up to Three Times the Thermal Conductivity of Competing Tapes

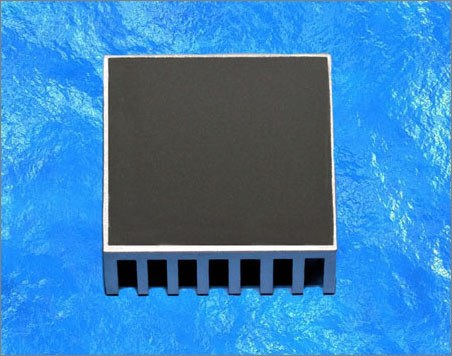

MH&W International has introduced Keratherm® KL 90 highly thermally conductive, double-sided adhesive tape which provides 1.4 W/mK of thermal conductivity – nearly three times higher than other thermal tapes – for more effective heat transfer from hot components to heat sinks. The new tape’s thermal impedance is just 208°C-mm2/W (0.32°K-in2/W).
Keratherm KL 90 tape consists of a ceramic-filled acrylic adhesive film that provides exceptional bonding properties, and replaces the use of mechanical fasteners, reducing costs and assembly time. A fiberglass-reinforced version, KL 91, is available for applications requiring higher levels of ruggedness, peel strength, and conformability to irregular surfaces. Both Keratherm KL 90 and KL 91 mounting tapes are silicone-free, eliminating any contamination concerns. If necessary, the tapes can be cleanly removed using a thin-edge blade.

Keratherm KL 90 double-sided adhesive tape is supplied on 400 mm (15.75 in) wide rolls, and is also available in custom die-cut shapes. Its standard material thickness is 0.300 mm, (0.012 in). KL 90 tape pricing starts at $0.22 per square inch in high volume orders. Developed and manufactured by Kerafol, a world leader in thermal interface material innovation, complete information on Keratherm KL 90 thermal adhesive tape can be found at www.mhw-thermal.com.

About MH&W:
MH&W International provides innovative, customer-focused thermal management solutions, including a wide range of Keratherm thermally conductive films, gap fillers, greases and insulators.
