Square LED Heatsink Uses Cold Forging and Pin Fin Design to Enhance Thermal Performance

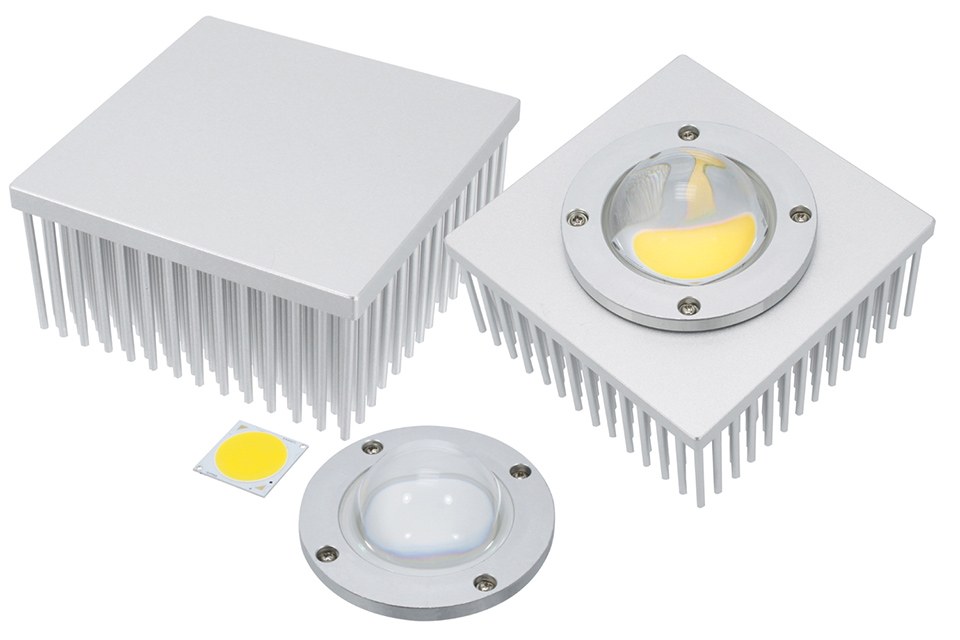

GlacialTech Inc., an experienced technology manufacturer, today launches a new cold forged heatsink for 60W LED thermal solutions– Igloo FS127.

Specifications:
•    Type: Igloo FS127
•    Dimension (mm): 127x127x63
•    Weight (g): 750
•    Material: AL1050
•    Color: Silver
•    Surface Treatment: Anodized
•    Crafts: Cold forging
•    Thermal Resistance (°C / W): 0.8980
•    Surface Area (mm²): 241166
•    Reference design power (watts): 60 W

Pin Fin Design:
Using a pin-fin heatsink design for better airflow and surface area, the Igloo FS127 features a very efficient 0.89°C / W thermal resistance, appropriate for high performance LED applications up to 60W. Anodized surface treatment gives the Igloo FS127 corrosion resistance, scratch-resistance, and heat tolerance, making it more physically robust than untreated aluminum. Compared to straight fin designs, the pin fin Igloo FS127 performs well regardless of orientation, making them ideal for lighting applications. A square heatsink shape accommodates square-type lighting fixture designs.

Low Thermal Resistance:
The Igloo FS127’s low thermal resistance is achieved through a combination of cold forging as well as high performance materials. Cold forging produces heat sinks with better thermal characteristics and easier assembly than traditional die-casting or aluminum extrusion. With the AL1050 aluminum used in the Igloo FS127, thermal conductivity is 2.36 times better compared to die casting; from 96.2 W/mK to 227 W/mK. Cold forging allows more complex shapes, and the Igloo FS127 is a one-piece design with no assembly required.

GlacialTech's Thermal Solutions:
GlacialTech's thermal solutions are designed with a focus on cost-effective performance, as well as weight and volume reduction. GlacialTech’s LED lighting applications are designed to offer lightweight, space-efficient cooling at a great value.

Read more about LED thermal solutions in GlacialLight's website: http://www.glaciallight.com/products/skd-cold-forging.htm
For inquiries about LED thermal solutions contact: ThermoDesign@GlacialTech.com

About GlacialTech:
GlacialTech Inc. is a diversified provider of thermal, power, optics and systems solutions, with many years of experience in thermal module design and manufacturing for internationally renowned brands including Acer, AdvanTech, Fujitsu Siemens Computers GmbH, Panasonic and Siemens AG. GlacialTech's product solutions attain an optimal balance of performance and value. For more information about GlacialTech thermal technology, please visit at www.GlacialTech.com
