Products, Materials + Tools | Oct 21, 2013

360 Degrees Full-Beam Angle Spatial Light LED Component

The GSZM LEDs are based on an unique capsulation technology: in the ≥2.0mm sealing colloid, densely covered with phosphor can effectively absorb blue light and reduce spillage of blue light, build sufficient security barrier for eyes. 360 degrees full-beam angle light LED makes spatial light came true, it breakout the drawback of exist LED just could light one direction. 360 degrees LED has the characteristics of no glare, no dazzling; uniform and soft light can help people build a cordial, warm and comfortable light environment.
360 Degrees Full-Beam Angle Spatial Light LED Component

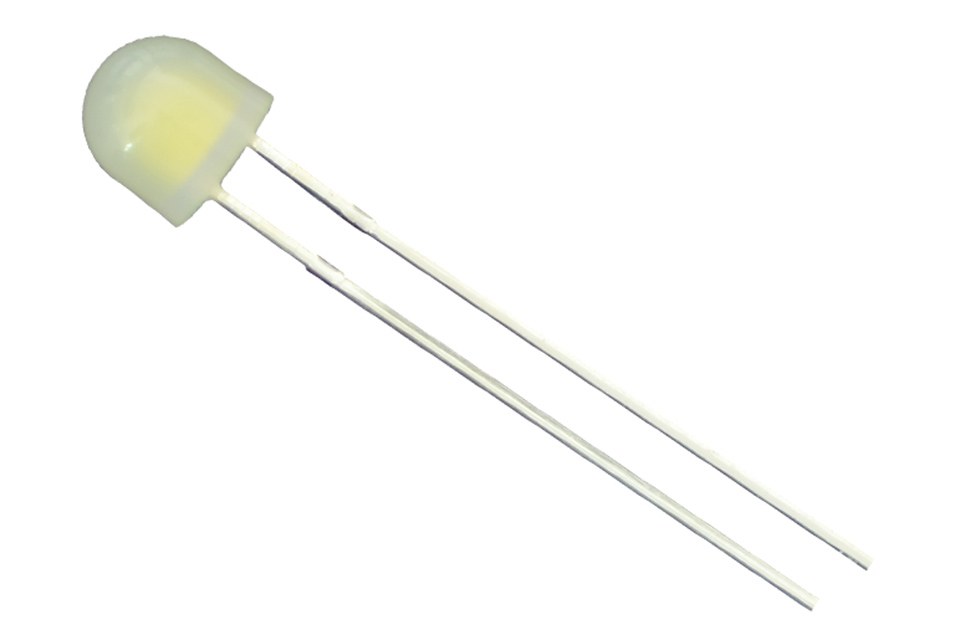

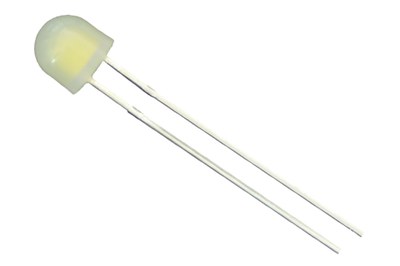

GSZM's 360 degrees full-beam angleLEDs are based on an unique encapsulation technology

GSZM's 360 degrees full-beam angleLEDs are based on an unique encapsulation technology

GSZM's 360 degrees full-beam angleLEDs are based on an unique encapsulation technology

Maximum Ratings of GS-593S02ZW-360/K5 at TA=250°C:
DC Forward Current                                               60mA
Peak Forward Current (1/10 duty cycle @ 1kHz)    100mA
Reverse Voltage                                                    5V
LED Junction Temperature                                   125℃
Operating Temperature Range                              -40℃ to +100℃
Storage Temperature Range                                 -40℃ to +100℃
Electrostatic Discharge Threshold (HBM)              ---------
Power Dissipation                                                 ---------

Typical Electrical/Optical Characteristics at TA=250C,If=60mA:

Sorted Kit

Part number

Forward Voltage
(Vf ,V)

Reverse Current
[I(Vr=5v) ,μA]

Color temperature
(K)

Working current
(mA)

Color rendering index （CRI）

GS-593S02ZW-360/K5

Typ

Max

Max

Min

Max

Typ

Max

Typ

3.0

3.2

5

5500

6500

60

------

80



Sorted Kit

Part number

Luminous Flux
( Φ ,lm)

Viewingangle
2θ1/2 (deg)

Emitted
Color

Lens
Color

Optical Rise Time
(τ,ns)

GS-593S02ZW-360/K6

Min

Max

Typ

White



Typ

18

22

360

30

Shenzhen Good-Self Lighting Technology Co.,Ltd.
Website: www.gszmlighting.com
Email: sale@gszmlighting.com
Tel: 86-755-84414697
Fax: 86-755-84261370
