Products, Materials & Tools | Jan 28, 2010

Avago Technologies Introduces Industry’s First Water-Resistant High-Brightness Surface Mount Tricolor LEDs

Avago Technologies today announced it has developed the industry’s first compact high-brightness water-resistant tricolor surface mount light-emitting diodes (LEDs) for use in indoor and outdoor full color signs and displays.

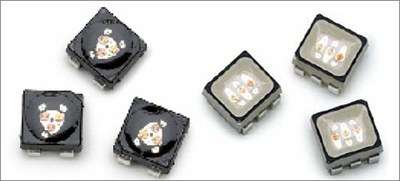

Avago’s ASMT-QTCO Plastic Leaded Chip Carrier (PLCC)-6 Blackbody and ASMT-YTBO industry standard PLCC- 4 LEDs have been enhanced to make them water-resistant.  As a result, a protection cover is not needed saving money for indoor and outdoor display designers.  These compact tricolor LEDs are ideal for use in electronic video screens and advertising signs used in transit malls, airports, and stadium scoreboards.  Avago is a leading supplier of analog interface components for communications, industrial and consumer applications.

Avago’s enhanced ASMT-YTBO LEDs provide full color display application designers with better color control and contrast, a 115-degree viewing angle and are specially designed to meet indoor and outdoor LED screen requirements for better screen resolution (greater than 12mm pixel size), and high-brightness performance.  They also have six leads to enable enhanced thermal management and individual color control of each chip to display a multitude of colors including white.  With dimensions of 4.4 mm by 4.4 mm by 3.5 mm, these LEDs from Avago also incorporate silicone material to extend light output performance over time.

The compact ASMT- QTCO package incorporates a separate heat path for each LED dice to enable it to be driven at higher currents. As a result, these SMT LEDs can operate in a wide range of environmental conditions to provide customers with high reliability.   Both tricolor LEDs are compatible with reflow soldering processes and have a moisture sensitivity level of 2a (MSL 2a) to make them ideal for use in SMT production environments.

Features:
• Water resistant to comply with IPx6 per IEC 60529:2001
• Compact tricolor PLCC-4/6 packages for high contrast ratio and screen resolution
• 115-degree viewing angle
• Silicone encapsulation material enables high reliability and long operating life (over 50,000 hours)
• Compatible with reflow soldering processes
• Low thermal resistance
• Pb-Free and RoHS compliant
• Moisture sensitivity: JEDEC MSL 2a

About Avago Technologies:
Avago Technologies is a leading supplier of analog interface components for communications, industrial and consumer applications. By leveraging its core competencies in III-V compound and silicon semiconductor design and processing, the company provides an extensive range of analog, mixed signal and optoelectronics components and subsystems to approximately 40,000 end customers. Backed by strong customer service support, the company's products serve four diverse end markets: wireless communications, wired infrastructure, industrial and automotive electronics, and consumer and computing peripherals. Avago has a global employee presence and heritage of technical innovation dating back 40 years to its Hewlett-Packard roots. Information about Avago is available on the Web at www.avagotech.com
