Bridgelux Expands Portfolio of Solid-State Light Sources with New Products for the General Lighting Market

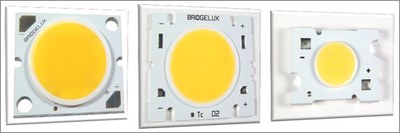

Bridgelux Inc., a leading developer and manufacturer of integrated, solid-state lighting solutions, today unveiled three new LED array product families that deliver high-quality, energy-efficient light sources cost-optimized for the burgeoning solid-state lighting market.

These new products are designed to replace incandescent, halogen, high intensity discharge (HID) and compact fluorescent lighting. The low power consumption, long lifetime, and high quality light of the Bridgelux LED Arrays deliver ideal options for indoor and outdoor applications ranging from retrofit light bulbs to street and wide area lighting. Bridgelux believes these products will help drive transformation of the $40 billion global lighting industry into a $100 billion market opportunity.

“With a broad range of solid-state light sources delivering performance and value to virtually all industry market segments, Bridgelux is well-positioned to help our customers meet all of their design application needs within the context of increasingly stringent global regulatory requirements,” said Jason Posselt, Bridgelux vice president of marketing. “These new products reflect Bridgelux’s core strength - the ability to reduce design complexity and simplify lighting system development and integration, while aggressively driving down the cost of solid-state lighting to enable widespread adoption.”

The Bridgelux LED Array product portfolio now features light output performance that ranges from 240 to 4500 operational or “hot” lumens (lumens under normal operating conditions), providing a full breadth of LED solutions to replace a broad range of high-volume conventional light sources. The new products and their features are summarized below.

The Bridgelux ES Array Series enables lamp and luminaire manufacturers to cost-effectively meet rapidly increasing global regulatory standards for general lighting such as Energy Star and Title 24 in the United States, Part L in the United Kingdom and others. The series delivers between 400 and 2000 “hot” lumens in a compact high flux density light source, enabling the replacement of incandescent, halogen and fluorescent conventional light sources. These new arrays are 30-60% more energy-efficient than previous product generations while dramatically reducing the price per lumen.


Features
  • Delivers between 400 and 2000 “hot” lumens
  • Compact high flux density light source
  • High quality uniform illumination without pixilation
  • Industries lowest thermal resistance
  • Plug and play solution enables rapid design integration
  • More energy efficient than incandescent, halogen and fluorescent lamps
  • Long operating life and reduced operating costs



Part Number CCT
(K)
CRI Luminous Flux
(Tj 25C)
Luminous Flux
(Tc 60C)
Current
(mA)
Voltage
(V)
BXRA-W0401 3000 82 440 400 700 9.5
BXRA-W0402 3000 82 460 420 700 9
BXRA-W0802 3000 82 930 850 1050 12.2
BXRA-W1202 3000 82 1320 1200 1200 15.1
BXRA-C0402 5600 65 450 410 500 9.5
BXRA-C0802 5600 65 880 800 700 12.7
BXRA-C1202 5600 65 1320 1200 1050 12.8
BXRA-C2002 5600 65 2200 2000 1500 16.2

The Bridgelux RS Array Series delivers high light output for applications including retail, street, wide area, high bay, and commercial lighting, replacing conventional light sources such as 50-70-Watt metal halide (HID) and high wattage compact fluorescent (CFL) lamps. These arrays produce between 3100 and 4500 “hot” lumens, enabling clean and uniform lighting effects without pixilation and excellent beam control for precision lighting. In retail lighting installations, these arrays have delivered a return on investment of less than two years while delivering the high quality of light proven to positively influence product turnover and customer experience in this environment.

Features
  • Delivers between 3100 and 4500 “hot” lumens
  • Compact high flux density light source
  • High quality uniform illumination without pixilation
  • Industries lowest thermal resistance
  • Plug and play solution enables rapid design integration
  • More energy efficient than incandescent, halogen and fluorescent lamps
  • Long operating life and reduced operating costs



Part Number CCT
(K)
CRI Luminous Flux
(Tj 25C)
Luminous Flux
(Tc 60C)
Current
(mA)
Voltage
(V)
BXRA-W3000 3000 82 3400 3100 2100 25.4
BXRA-C4500 5600 65 5000 4500 2100 25.4


The Bridgelux LS Array Series is a new set of miniaturized LED arrays that enable both diffuse and directional light sources for applications including landscape lighting, home luminaires, white goods and retrofit light bulbs. Delivering between 240 and 360 lumens, these products are ideal replacement options for low wattage halogen, incandescent and CFL lamps.

Features:

  • Delivers between 240 and 360 “hot” lumens
  • Compact high flux density light source
  • High quality uniform illumination without pixilation
  • Industries lowest thermal resistance
  • Plug and play solution enables rapid design integration
  • More energy efficient than incandescent, halogen and fluorescent lamps
  • Long operating life and reduced operating costs



Part Number CCT
(K)
CRI Luminous Flux
(Tj 25C)
Luminous Flux
(Tc 60C)
Current
(mA)
Voltage
(V)
BXRA-W0240 3000 82 265 240 350 13.2
BXRA-W0260 3000 82 295 260 350 12.6
BXRA-C0360 5600 65 400 360 350 13.2


Bridgelux LED arrays are RoHS compliant. In addition, Bridgelux is in the process of securing UL recognition for its entire range of LED array products to further simplify the design and customer acceptance process. Please visit Bridgelux for technical details regarding each product..

About Bridgelux:
Bridgelux is a leading developer and manufacturer of technologies and solutions that will transform the $40 billion global lighting industry into a $100 billion market opportunity. Based in Silicon Valley, Bridgelux is a pioneer in solid-state lighting (SSL), expanding the market for light-emitting diode (LED) technologies by driving down costs of LED lighting systems. Bridgelux’s patented light source technology replaces traditional technologies (such as incandescent, halogen, fluorescent and high intensity discharge lighting) with integrated, solid-state lighting solutions that enable lamp and luminaire manufacturers to provide high performance and energy-efficient white light for the rapidly growing interior and exterior lighting markets, including street lights, commercial lighting and consumer applications. With more than 250 patent applications filed or granted worldwide, Bridgelux is the only vertically integrated LED manufacturer and developer of solid-state light sources that designs its solutions specifically for the lighting industry. For more information about the company, please visit www.bridgelux.com
