Products, Materials & Tools | Apr 10, 2009

EVERLIGHT Introduces EHP-B02 3 in 1 Full Color LED

Everlight Electronics Co., Ltd. (TSE: 2393) today announced the availability of the EHP-B02 3 in 1 Full Color LED in a new surface mount (SMT) package. The EHP-B02 combines the benefits of high power and high efficiency, and each LED has sufficient brightness to replace a lighting fixture consisting of neon lights, CCFL and LED arrays. For LED users, EHP-B02 offers small-size package, high luminous flux and dominant wavelengths.

“The EHP-B02 is perfectly suited for decorative and entertainment illumination applications requiring a small surface mount package” said Allen Lee, Manager of the Lighting Business Unit at Everlight Headquarters Taiwan. “With the EHP-B02 introduction, Everlight continues to expand its LED technology beyond just general lighting and into applications requiring multicolor, high efficiency, and high-brightness light sources.”

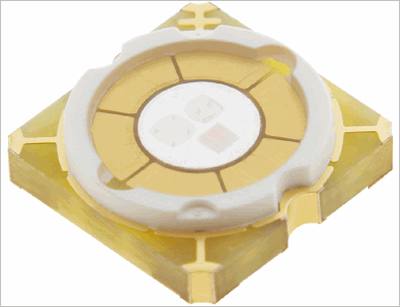

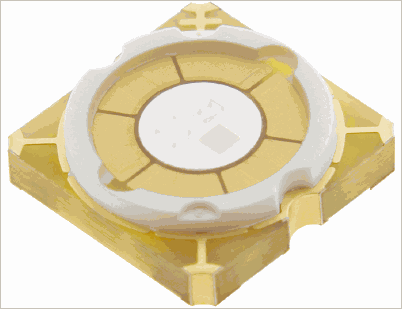

The Everlight EHP-B02 LED consists of 3 chips mounted onto an Aluminum-cored printed circuit board.  It produces 3 watts of power with typical light flux output of 35 lm (green color), 25 lm (red color), and 8 lm (blue) at 350mA. The EHP-B02 is a RoHS-compliant component and meets green environmental initiatives. With its 130° typical viewing angle and low thermal resistance (Rth,j-L = 9 °K/W), the EHP-B02 is ideally suited for a variety of applications, including decorative, entertainment, architectural lighting, TFT LCD display backlight, signal and symbol luminaries for orientation marker lights (e.g. steps, exit ways. etc.), and exterior and interior automotive illumination.

Product Information for EHP-B02 Full Color LED: Currently available - HERE
