Products, Materials & Tools | Apr 16, 2012

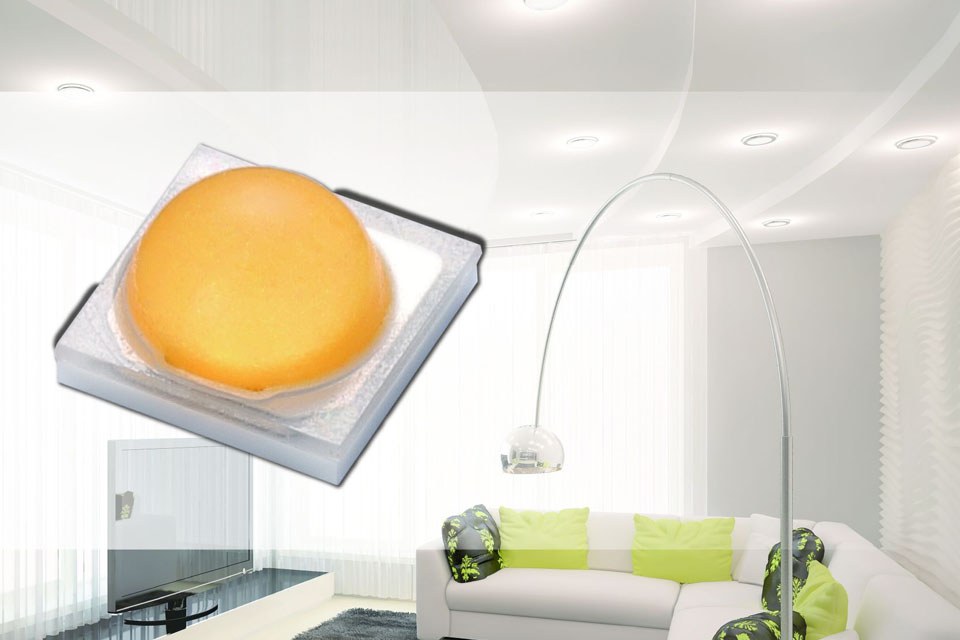

Everlight Introduces the Brand New Shwo D LED Lighting Series

Lighting Series component portfolio, EVERLIGHT Electronics, one of the world's leading companies in LED Lighting introduces a brand new high power, high brightness LED package, the "Shwo D" Series - our new powerful, bright and economic (superb $/lm) LED series in a compact ceramic package.

The Shwo D series is a surface-mount high-power device featuring high brightness combined with a compact size (3.5x3.5x0.58mm) that is suitable for all kinds of lighting applications such as general illumination, flash, spot, signal, industrial and commercial lighting. With standard operating current of 350mA, the Shwo D family can be driven at 1 watt. The minimum luminous flux (lm) of the 1W Shwo D can be up to 110 lm at 6500K(CCT) or 80 lm at 3000K(CCT) when driven at 350mA of current.

The thermal pad of this device is electrically isolated providing convenience in thermal and electrical design. The Shwo D series also has the advantage of low thermal resistance. It is one of the most promising devices in Everlight's high power Lighting Series product offering and is ready to face the challenges of today's Solid-State Lighting requirements.

EVERLIGHT is also promoting closer working relationships between our R&D, Sales and Marketing teams to better meet and exceed our customer's expectations in both product offering and technology perspectives. The Shwo D LED series and its many technical features are a result of fostering a closer relationship between these teams.

• Small package with high efficiency
• ESD protection up to 8KV
• Soldering method: SMT
• Binning Parameters: Brightness, Forward Voltage, Wavelength and Chromaticity
• Moisture Sensitivity Level: 1
• RoHS compliant
• Matches ANSI binning
• Lumens Maintenance testing conforms to IESNA LM80 test method applications

• General Lighting
• Industrial and Commercial Lighting
• Directional Lamps - MR16, GU10, PAR
• Spot Lighting
• Flash
• Street Lighting

More information or data sheet for this product upon request: Please contact your local Everlight sales office. Local Sales information:

About Everlight Electronics Co., Ltd:
Everlight Electronics Co., Ltd. was founded in 1983 in Taipei, Taiwan.
Playing a critical role in the formation of the global LED industry, the company is rapidly ascending to become a leading supplier due to its dedication to certification, R&D, production, quality, marketing and global customer service. Everlight provides a diverse product portfolio consisting of High Power LEDs, Lamps, SMD LEDs, LED Lighting Modules, Digital Displays, Optocouplers and Infrared Components for various applications. Today, EVERLIGHT is a global company with over 6,400 employees based in China, Hong Kong, Japan, Korea, Singapore, Malaysia, India, Germany, Sweden, U.S., and Canada.
