Products, Materials & Tools | May 27, 2010

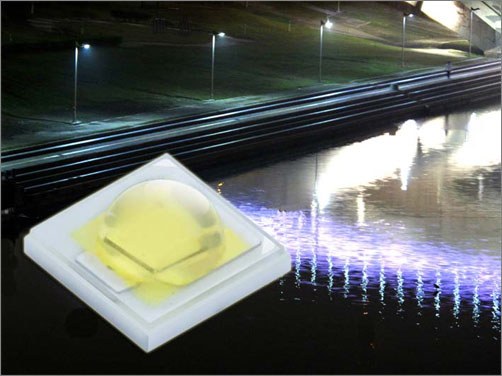

Everlight Introduces the New Shwo LED Lighting Series: High Power and High Luminosity for Advanced Lighting Applications

Expanding Everlight's Lighting Series component portfolio, Everlight Electronics introduces another high power, high brightness LED package, the "Shwo" Series - our powerful, bright and economic (superb $/lm) LED series in a compact ceramic package.

The Shwo series is a surface-mount high-power device featuring high brightness combined with a compact size (3.5x3.5x1.85mm) that is suitable for all kinds of lighting applications such as general illumination, flash, spot, signal, industrial and commercial lighting.

With the capability of 100~700mA driving currents, the Shwo family can be driven up to 3 watts. The minimum luminous flux (lm) of the 1W Shwo can be up to 100 lm at 6500K(CCT) or 80 lm at 3000K(CCT) when driven with 350mA current. The minimum luminous flux (lm) of the 3W Shwo can be up to 160 lm at 6500K(CCT) or 120 lm at 3000K(CCT) when driven with 700mA current.

The thermal pad of this device is electrically isolated providing convenience in thermal and electrical design. The Shwo series also has the advantage of low thermal resistance. It is one of the most promising devices in Everlight's high power Lighting Series product offering and is ready to face the challenges of today's Solid-State Lighting requirements.

Everlight is also promoting closer working relationships between our R&D, Sales and Marketing teams to better meet and exceed our customer's expectations in both product offering and technology perspectives. The Shwo LED series and its many technical features are a result of fostering a closer relationship between these teams.

Features:
• Small package with high efficiency
• ESD protection up to 8KV
• Soldering method: SMT
• Binning Parameters: Brightness, Forward Voltage, Wavelength and Chromaticity
• Moisture Sensitivity Level: 1
• RoHS compliant
• Matches ANSI binning
• Lumens Maintenance conforms to IESNA LM80 test method

Applications:
• General Lighting
• Decorative and Entertainment Lighting
• Signal and Symbol Luminaries for orientation marker lights (e.g. steps, exit ways, etc.)
• Exterior and Interior Automotive Illumination

Samplea are available now and mass production will start end of second quarter 2010. More information or data sheet for this product upon request: Please contact your local Everlight sales office. Local Sales information: www.everlight.com

About Everlight Electronics Co. Ltd.:
Everlight Electronics Co., Ltd. was founded in 1983 in Taipei, Taiwan. Playing a critical role in the formation of the global LED industry, the company is rapidly ascending to become a leading supplier due to its dedication to certification, R&D, production, quality, marketing and global customer service. Everlight provides a diverse product portfolio consisting of High Power LEDs, Lamps, SMD LEDs, LED Lighting Modules, Digital Displays, Optocouplers and Infrared Components for various applications. Today, Everlight is a global company with over 5,300 employees based in China, Hong Kong, Japan, Korea, Singapore, Malaysia, India, Germany, Sweden, U.S., and Canada.
