Products, Materials + Tools | Feb 20, 2008

Everlight's New 1- and 3-Watt XcelLED™ High-Power LEDs Offer Design Flexibility in a Wide Range of Applications

Everlight Electronics Co. Ltd. (TSE: 2393) introduces 1- and 3-Watt high-power LEDs that deliver high luminosity, long operating life and system efficiency in a broad range of designs.

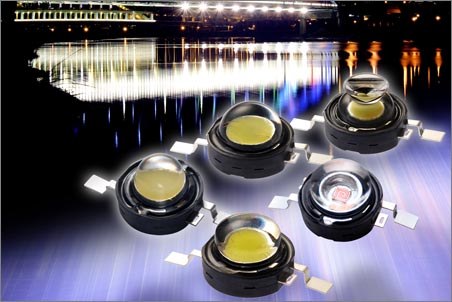

Part of Everlight’s XcelLED™ series, the EHP-AX08/P01 (1-Watt) and EHP-AX08/P03 (3-Watt) families are among the highest-flux emitters on the market. Applications that benefit from EHP-AX08 LEDs include backlighting (CFFL replacement in LCD TVs and screens), automotive lighting (interior and exterior signaling), as well as architectural, aerospace and emergency lighting.

Everlight’s EHP-AX08 emitters feature a silicon lens, high luminous flux (up to 90 lm/W) and low thermal resistance (15°C/W, Typ.). Sized in an industry-standard 8 mm x 8 mm x 5.7 mm SOP package, these LEDs are designed to handle higher reflow soldering temperatures and, unlike other packaging methods, their silicon encapsulation prevents accelerated degradation. EHP-AX08 devices optimize heat control by providing low thermal resistance, alleviating a primary concern in LED applications. And, in addition to increasing brightness, EHP-AX08 LEDs save power since their high-lumens output allows the LED to be driven at lower currents.

Furthermore, Everlight’s two EHP-AX08 LED families increase design flexibility by offering many different configurations and device options. Each LED in both the 1- and 3-Watt family, for instance, offers a choice of four lenses (Lambertian, Batwing, Side-emitting, and Focus), eight basic colors including white (and at least two versions of each), as well as a star heat sink for each configuration. Along with all available device options, Everlight offers precise binning for luminous flux, forward voltage, dominant wavelength and color temperature, allowing strictly regulated end solutions.

“By reaching up to 90 lumens, Everlight’s new high-power EHP-AX08 LEDs meet the growing market demand for brighter products,” said Ewing Liu, Everlight’s High Power/High Bright technical marketing manager. “Moreover, the many device options offered by both the 1- and 3-Watt families provide total design flexibility in an array of applications.”

 Price: Ranging from approximately US$ 1.00 for standard, 1-Watt versions to US$ 2.20 for 3-Watt versions (in production quantities).
Availability: Now
Delivery: 10 to 12 weeks lead-time. (Sales contact information.). Everlight offers buffer inventory services on request, as well as module and custom design services.

About Everlight Electronics Co. Ltd.:
Everlight Electronics Co. Ltd is a fast-growing global manufacturer of LEDs, displays, infrared and optocoupler components serving various applications in the consumer, computing, automotive, telecommunication and industrial market segments. Everlight’s annual growth rate of more than 20 percent over the past ten years is the combined result of its well-engineered products, highly efficient in-house manufacturing facilities and extensive global supply chain. Founded in 1983, Everlight today is a $300 million company headquartered in Taipei, Taiwan, with over 4,000 employees and operations in China, Asia, North America and Europe. Everlight Americas, the company’s North American subsidiary, is based in Carrollton, Texas. For more information please go to: www.everlight.com.
