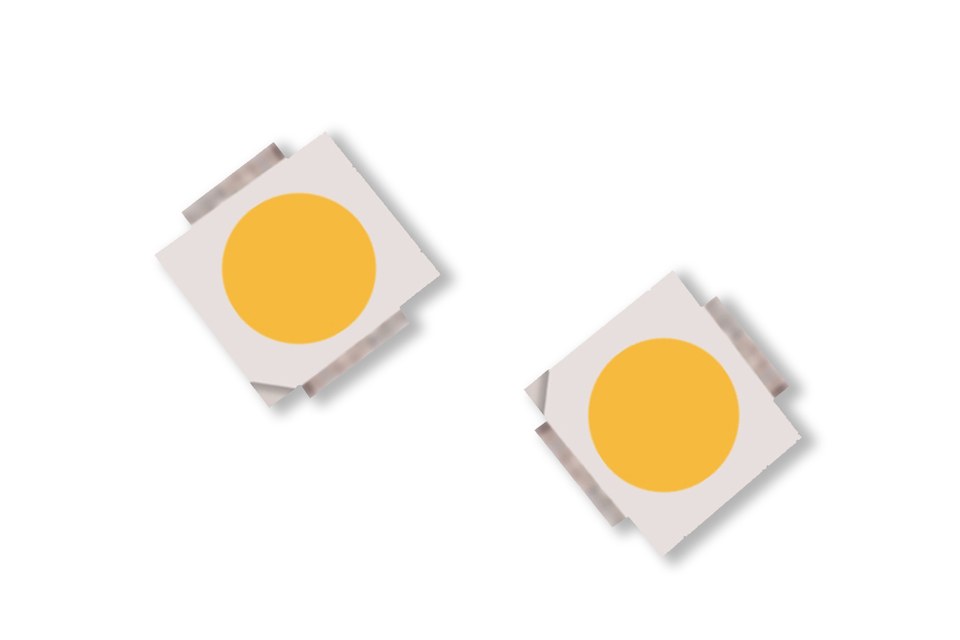

HONGLITRONIC the 3rd Generation Epoxy Molded SMD LED EMC3535

Honglitronic introduces the SMD LED EMC3535. Performance in thermal resistance is better than PPA, 300℃ is workable as well as high reliability assurance. High thermal conductivity, low thermal resistance (Rthj-s is around 10°C/W). The SMD LED EMC3535 offers 115lm/W for natural white and 95lm/W for warm white, compact size with high watts & high luminous efficiency (max power 1.5W and 120lm/W). Higher cost-performance ratio than ceramic LED, circuit design of low current in series connection is available. EMC3535 is being LM-80 6000h tested. Supports ENERGY STAR® lumen maintenance certification requirements.

Features and Benefits:

High efficacy
High thermal conductivity, low thermal resistance (Rthj-s is around 10℃/W)
Circuit design of low current in series connection is available
Higher cost-performance ratio than ceramic LED
PLCC-2 Package
Package: 2000pcs/reel
RoHS compliant
Dimensions:  3.5mm×3.7mm×0.8mm


Key Applications:

LED bulb
TV backlight
Spot light
Indoor lighting



Model

Color

CCT(K)

Power(W)

IF(mA)

Luminous flux (lm) typ

VF(V)

CRI≥

Viewing Angle

EMC3535DW-2-S1

Natural white

6000

1

300

115

2.9-3.4

70

120°

EMC3535DW-2-S1

Warm white

2800

1

300

95

2.9-3.4

80

120°


For general information about Honglitronic and products please visit
http://www.honglitronic.com/en/products.aspx?f_type=244

For product inquiry please contact sales@honglitronic.com



HONGLITRONIC
Honglitronic (Stock code: 300219) was founded in 2004. Honglitronic carries out research and development of LED packaging, with our white LED packaging technology being a leading domestic position. Our LED encapsulation workshop over 47,000㎡, with hundreds of automated LED production lines. Distinguished clients such as Guangzhou Metro, BYD car, Walmart, Holiday Inn and others have already benefited from one of the widest ranges of LEDs in mainland China. Our catalogue includes High Power LEDs, SMD LEDs, COB LEDs, Lamp LEDs, and much more. As one of the first manufacturers in mainland China to pass the IES LM-80 6,000-hour test, our LED package components comply with the U.S.A. energy star test standard, which provide a strong quality Assurance for products that are sold both at home and abroad. To start sourcing LEDs with verified quality, inquire today.
