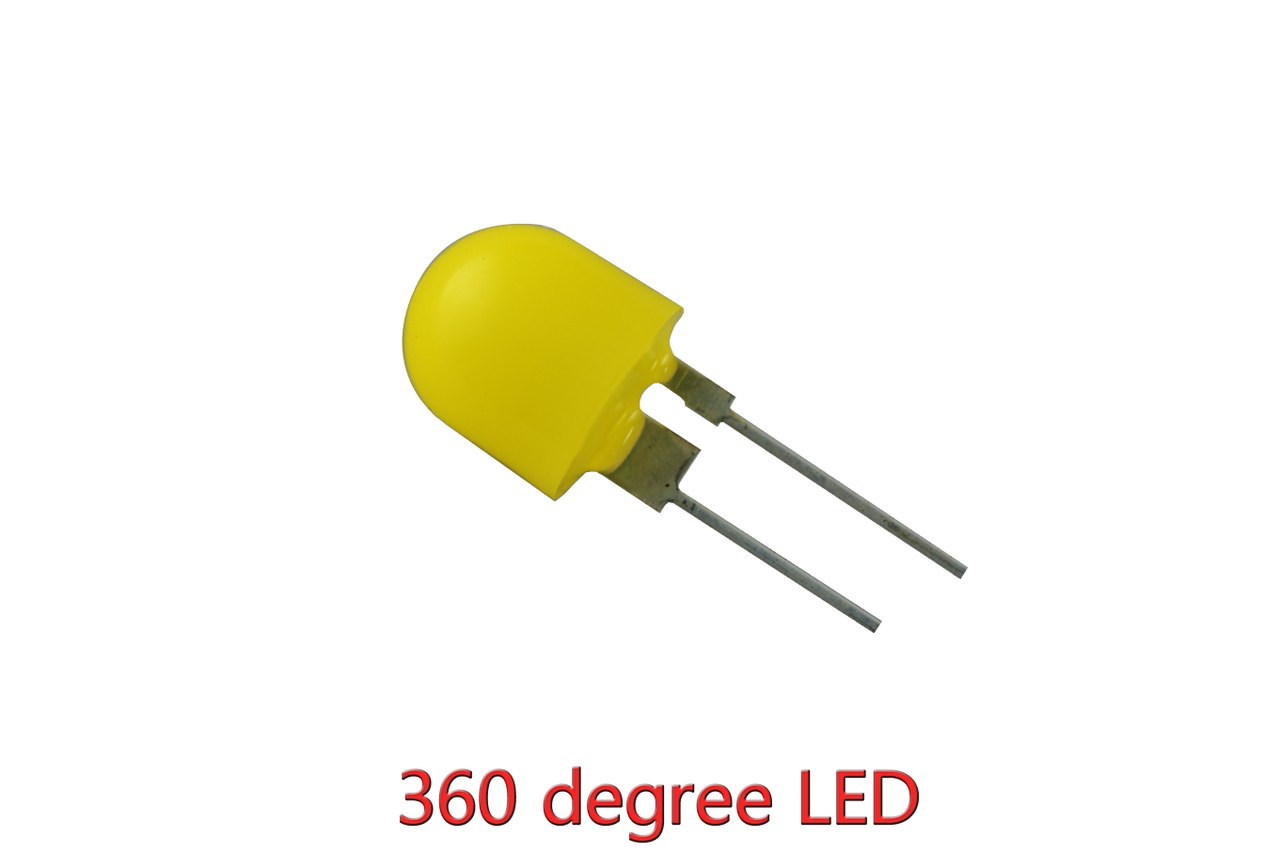

LED Component with 360 degree Light

As we know, the LED is directional in nature. However, the world’s first “360 degree spatial LED ” was born in the “white LED lab” of Shenzhen Good-Self Lighting Technology Co.,Ltd.. And it has already been awarded a patent. The launch of the 360 degree spatial LED rewrites the history of the directional LED. The LED with 360 degrees spatial light technology can emit light in all directions. We have applied this technology to a wide range of applications from low-power LEDs, high-power LEDs, super-power LEDs as well as from white LEDs to monochrome light. Most importantly, the 360 degree spatial light has high luminous quality ,including high luminous efficacy, glare free, no multi shadow, perfect light distribution, soft light, uniform color, stereoscopic impressive shape, no ghosting, and top-level Weluna.

•    Product applies anti-decay silicon material
•    Yellow or milky white surface
•    Two inducting pins are made of silver-plated red copper
•    The illuminating angle of product is 360 degrees
•    350mA DC input, no hidden hazard
•    Lifespan of product is over 20,000 hrs.

Product description:
Emitted Color: white
CCT:K1:2700~3000K K2:3000~3500K K3:3500~4500K  K4:4500~5500K  K5:5500~6500K   K6:≥6500K
Working Voltage: 3.0-3.3V
Working Current::  350mA
Typ. Total Energy Used : 1W
Luminous Flux: 90~115lm
Beam Angle : 360º
CRI: 65~80
Dimensions:  Φ12mm

Product features:
Lighting decay characteristics: Lighting level ,no decay .
Luminescent characteristics: 360° spatial light
Quality of lighting: High photosynthetic efficiency, no glare, no exposure dead Angle, brightness and color distribution is uniform, the light is downy, modeling the   stereoscopic effect is strong, no ghosting, bright feeling index (Weluna) has achieved a maximum level.

Company name: Shenzhen Good-Self Lighting Technology Co., Ltd.

Website: www.gszmlighting.com
Email: sale@gszmlighting.com
Address: The 5th Building in Futian Industrial Park ,Dakang, Henggang, Longgang District, Shenzhen, China
Tel: 86-755-84414697
Fax: 86-755-84261370
