LED Engin Doubles the Flux Density from tiny RGBW Emitters

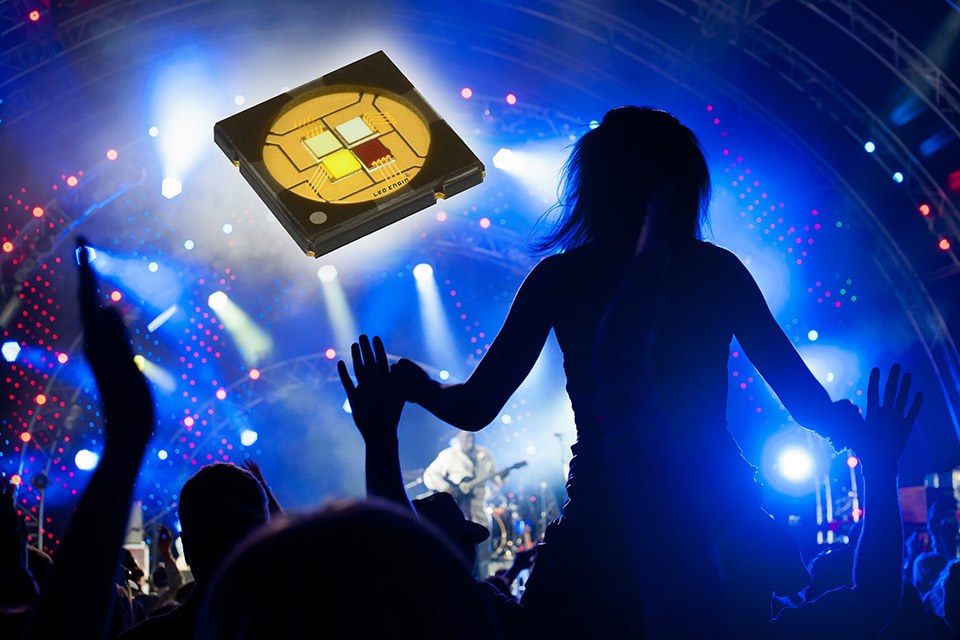

LED Engin, Inc. has launched a new 4-die, high current, RGBW flat lens LED emitter that sets a new standard for best-in-class flux density in stage, entertainment and architectural lighting. The LZ4-04MDPB emitter delivers more than twice the light output of the company’s previous version because each individually addressable green, blue and white die can be driven at up to 3 amps and the red die up to 2.5 amps from the same 2.15mm x 2.15mm light emitting surface as its predecessor. It produces everything from tungsten-effect white lighting to a full spectrum of brilliant colours in fixtures such as moving heads with zoom optics, directional effect lighting and wall washes.

The tiny emitter, which has a 7mm x 7mm footprint, rapidly and effectively dissipates up to 40 watts thanks to a thinner, 4-channel, multilayer ceramic substrate which cuts thermal resistance to just 0.9 °C/W.

It has a lower profile substrate and thinner flat glass lens than the previous version. Secondary optics can therefore be positioned closer to the surface, maximizing coupling efficiency to deliver powerful, punchy illumination from fixtures with tightly controlled beam widths down to 4 degrees. Fixture designers can adopt the same secondary lenses and optical design used with existing LED Engin flat top RGBW emitters, providing the lenses are rated for the increased temperatures that result from higher power operation.

The breakthrough performance of the LZ4-04MDPB emitter has been achieved by developing a thinner, 4-channel, multilayer ceramic substrate. This facilitates better heat dissipation, allowing each die to be driven to a higher current without compromising reliability or operating life.

LED Engin CEO, David Tahmassebi, said, “Once again, we’ve advanced our proprietary technologies to deliver exactly what customers in these demanding lighting applications have asked us for: ever higher light output without increasing the emitter size. Most importantly, we’ve done so in a way that ensures sustained performance and long-term reliability.”

LZ4-04MDPB emitters are available in production quantities now.

About LED Engin:

LED Engin, based in California’s Silicon Valley, specializes in ultra-bright, ultra-compact solid state lighting solutions that allow designers and engineers the freedom to create uncompromised yet energy efficient lighting experiences. The company’s LuxiGen™ Platform - an emitter and lens combination or integrated module, delivers superior flexibility in light output, ranging from 3W to 90W, a wide spectrum of available colors, including whites, multi-color and UV, and the ability to deliver upwards of 5,000 high quality lumens to a target. The small size combined with powerful output allows for a previously unobtainable freedom of design wherever high flux density, directional light is required.
LED Engin products are sold directly through LED Engin sales channels and its distributors. They are available for immediate sampling. For additional information, or to find a sales representative, please visit: www.LEDEngin.com
