Horticulture | LEDs | Color LEDs | Components | Oct 02, 2017

Lumileds Adds New Deep Red, Far Red as well as CoB Offerings for Horticulture Lighting

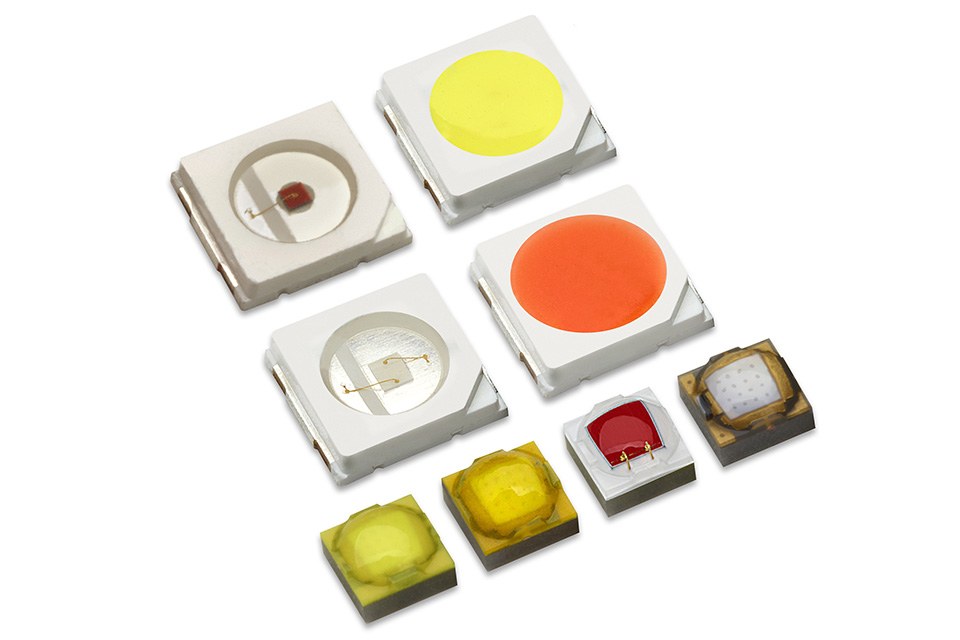

Lumileds today introduced three new products in its Luxeon SunPlus Series of award winning LEDs for horticulture lighting. The Luxeon SunPlus Series is the only line of LEDs on the market to be tested and binned by photosynthetic photon flux (PPF). The portfolio of colors enables wavelength tuning for maximum crop yield in both greenhouse and vertical farming applications.

The addition to the Luxeon SunPlus 35 Line of Far Red and Deep Red will enable designers of vertical farm and interweaving fixtures to tune the spectrum specifically for the crop being grown. The new Luxeon SunPlus CoB Line, available in Purple, is designed for greenhouse applications where attaining high PPF and fast time to market are top priorities.

The Luxeon SunPlus 35 Line is optimized for vertical farming in shallow tiers so uniformity is optimized at very short distances. The Deep Red (650-670 nm) and Far Red (720-740 nm) wavelengths join the existing Royal Blue (445-455 nm), Lime (broad spectrum) and three shades of Purple with varying contributions of blue (2.5%, 12.5% and 25%) in a 3.5x3.5 mm format. “These essential red wavelengths are combined with blue to give the exact spectra needed for each crop. Our Horticulture Lighting Calculator is especially helpful in this context because lighting manufacturers can experiment with LED ratios and spectral power distributions before building the fixtures,” said Jennifer Holland, Product Line Director of the Luxeon SunPlus Series.

Customer success and market adoption of the Luxeon SunPlus 35 Purple and the need for even greater PPF in a single device led to the development of the Luxeon SunPlus CoB Purple (12.5% blue) product. In contrast to vertical farming where lighting is positioned a short distance from plants, greenhouse lighting requires deep penetration into the plant canopy, which is achieved with a directional CoB. The CoB portfolio complements the Luxeon SunPlus 20 and 35 Lines, which offer a variety of colors to optimize the spectrum for greenhouse applications. The CoB form factor also means that standard optics, holders and drivers are available to help manufacturers accelerate time to market of their fixtures. “The chip on board approach allows us to maximize PPF to as high as 350 µmol/s from a single source,” said Holland. The Luxeon SunPlus CoB Purple is available with 15, 19 and 32 mm light emitting surfaces.

For more information on the Luxeon SunPlus Series, see www.lumileds.com/horticulture/products

About Lumileds:

For automotive, mobile, IoT and illumination companies who require innovative lighting solutions, Lumileds is a global leader employing more than 9,000 team members operating in over 30 countries. Lumileds partners with its customers to push the boundaries of light.
To learn more about our portfolio of lighting solutions, visit www.lumileds.com
