Components | LEDs | White Mid Power LEDs | Retrofit | Mar 11, 2019

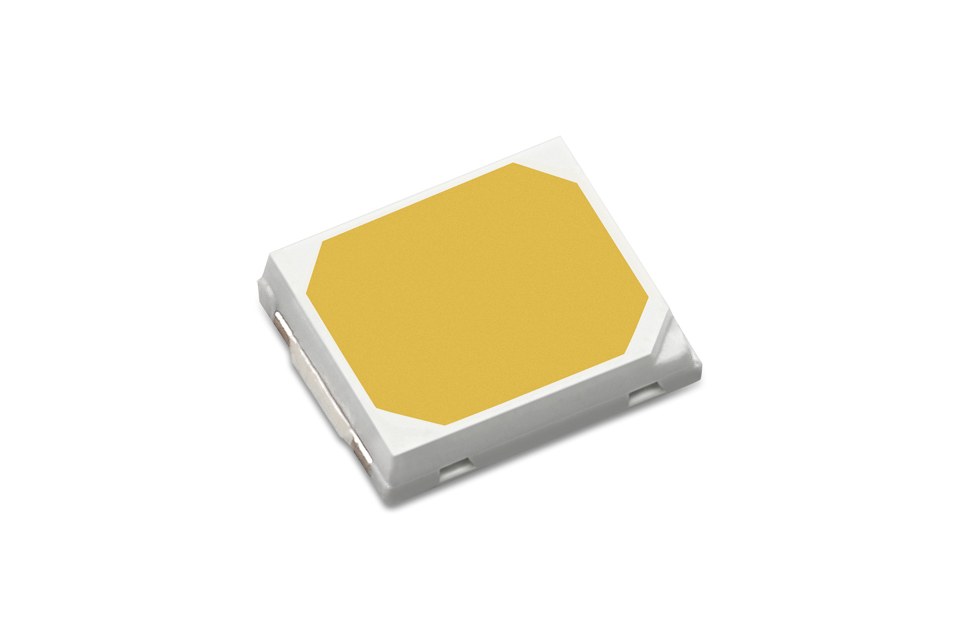

Lumileds Boosts Efficiency and Cost Effectiveness of Luxeon 2835E for Retrofit Lamps & Downlights

Lumileds introduced a new version of the Luxeon 2835E 9V LED specifically optimized for the typical drive current of retrofit lamps and downlights, 100 mA. Lamp designers will achieve a 5% boost in efficacy over the 60 mA LED when driven at the same current, leading to more efficient retrofit lamps including A19, PAR and B11 lamps. Forward voltage drops by 4% as well. For instance, at 2700K and 80 CRI, the Luxeon 2835E 9V produces 118 lm and achieves 127 lm/W at 9.3V (versus 120 lm/W at 9.7 V).

"The Luxeon 2835E is extremely popular for retrofit lamps because of its high efficiency and compact package. Now with a drive current closer to operating conditions, customers get the most relevant spec for output and efficacy," said Mei Yi, Product Manager of Mid Power Products at Lumileds. Unlike competing products, the Luxeon 2835E also can be driven at up to 150 mA, with a junction temperature of 125°C for reduced LED count in compact designs.

The Luxeon 2835E LEDs are available in a wide range of color temperatures and minimum CRI of 70 to 90. The LEDs are hot color targeted, ensuring the color remains inside ANSI bin specifications at typical operating conditions. Design kits are available to meet to 3-, 4- and 5-step MacAdam ellipse color consistency.

For more information on Lumileds Luxeon 2835E 9V, see lumileds.com/luxeon2835line

About Lumileds:

For automotive, mobile, IoT and illumination companies who require innovative lighting solutions, Lumileds is a global leader employing more than 9,000 team members operating in over 30 countries. Lumileds partners with its customers to push the boundaries of light.
To learn more about our portfolio of lighting solutions, visit lumileds.com
