Products, Materials & Tools | Mar 29, 2016

Lumileds New LED Demonstrates Superior Resistance to Harsh Environments

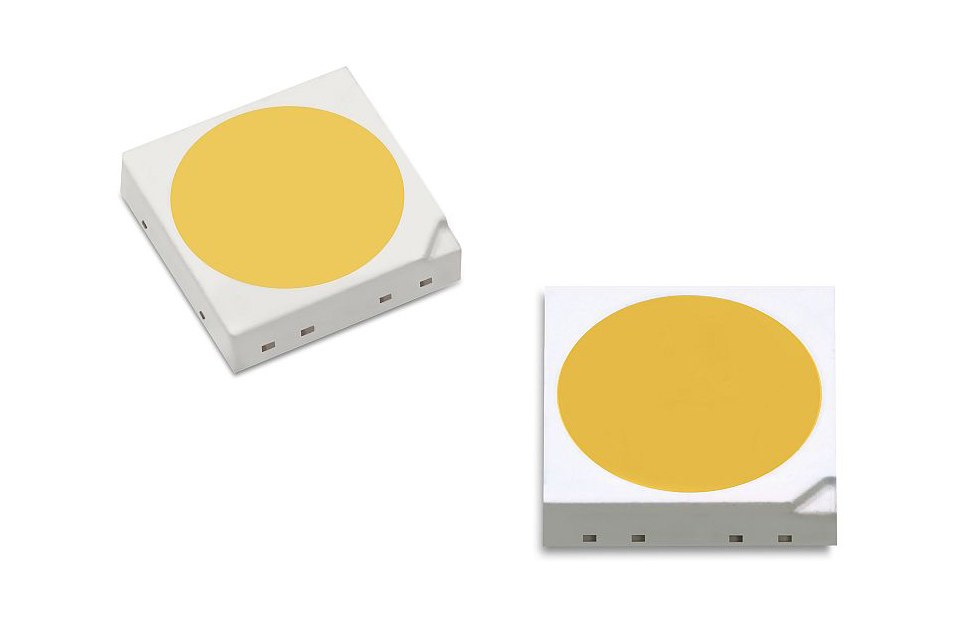

Today Lumileds introduces the Luxeon HR30 LED, a mid power device that withstands harsh chemical environments and is designed with robust packaging and industry-best materials to operate for over 100,000 hours of continuous operation. This LED addresses the tremendous need for dependable lighting that will operate in hazardous environments (such as chemical plants, power generation facilities and natatoriums) and be able to withstand extremes of temperature and operating current.

“The Luxeon HR30 is the only LED in its class to provide a service life in the 100,000 hour range while withstanding corrosive elements like sulfur and chlorine,” said Matthew Everett, Senior Product Director for Luxeon Mid Power Products. The LED’s chemical resistance is partially attributed to its gold-plated leadframe and its optimized materials package. The Luxeon HR30 has demonstrated strong performance in chemical resistance tests such as IEC68-2-43 (15 ppm): delta LOP < 10%, delta u’v’ < 0.006 after 21 days. “Engineering for chemical resistance is all about selecting the best materials and then testing those materials under harsh conditions. We have leveraged our expertise in materials science and lumen maintenance to produce the industry’s most robust mid power LED,” said Everett.

The Luxeon HR30 produces 125 lumens at 134 lm/W when driven at 150 mA at 4000 K and 70 CRI. The LED is available at color temperatures of 4000 K, 5000 K and 5700 K at 70 CRI and 2700 K, 3000 K, 4000 K and 5700 K at 80 CRI Luxeon HR30 is one of the breakthroughs introduced during Lumileds Mid Power March 2016.

For more information see

About Lumileds:

Lumileds is the global leader in light engine technology. The company develops, manufactures and distributes groundbreaking LEDs and automotive lighting products that shatter the status quo and help customers gain and maintain a competitive edge. With a rich history of industry “firsts,” Lumileds is uniquely positioned to deliver lighting advancements well into the future by maintaining an unwavering focus on quality, innovation and reliability.
To learn more about our portfolio of light engines, visit
