Products, Materials + Tools | Sep 21, 2010

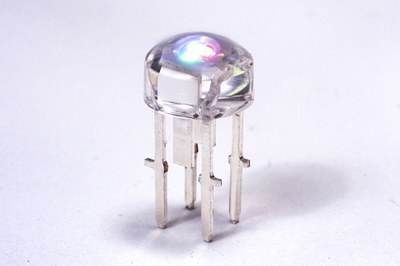

New LUMEX Quasarbrite 4-Leaded RGB LED Features Market-Leading 120° Viewing Angle

Lumex announces the global launch of the through-hole QuasarBrite 4-Leaded RGB LED. With a market-leading 120° viewing angle, the QuasarBrite 4-Leaded RGB LED is ideally suited for applications that require high intensity light in spatially restricted spaces. Additionally, the QuasarBrite 4-Leaded RGB LED boasts an innovative lead frame design that provides superior heat dissipation and provides opportunities for cost and real estate savings.

The QuasarBrite 4-Leaded RGB LED provides excellent visual performance. Whereas a traditional through-hole LED features a viewing angle of 30° to 60°, the QuasarBrite 4-Leaded RGB LED has a viewing angle of 120°. The RGB format combined with this extended viewing angle provides consistent, well-matched visual performance and even view angle throughout the display.

The QuasarBrite 4-Leaded RGB LED features an enhanced thermal design lead frame, which allows for superior heat dissipation and therefore longer life expectancy. The off-the-board design also provides enhanced convection with air freely passing on all sides of the epoxy for more efficient cooling.

These features make the QuasarBrite 4-Leaded RGB LED ideal for applications that require a matrix of high intensity output with a wide viewing angle including:
• High Output Signage (close proximity) (such as airport, retail and hospitality signage);
• General lighting (decorative lighting, indicator lighting);
• Gaming (decorative and indicator lighting throughout gaming machines);

Kay Fernandez, Product Technology Manager at Lumex explains “Lumex’s new through hole 4-Leaded RGB LED features a redesigned lead frame that allows for higher output thermal conductance and provides superior moisture resistance when compared to typical surface-mount devices.”

The QuasarBrite 4-Leaded RGB LED also provides several opportunities for cost and real estate savings. The use of a single 4-Leaded RGB LED can result in up to a 30% cost savings as well as a 70% real estate savings compared to the use of individual red, green and blue packages. Replacing three parts with a single part number also simplifies ordering and maintenance processes.

The RoHS compliant 4-Leaded RGB LEDs (part number SSL-LX503SIUPGUSBC) contain three individual dies in red (635nm), green (520nm) and blue (470nm). Samples of these devices are available from stock, with production quantities in 6-8 weeks.  Pricing is dependent on quantity ordered, and is less than one dollar per unit in production quantities.

For additional information or engineering assistance:
In the Americas and Europe, contact Lumex’s Sales Department, 290 E. Helen Rd., Palatine, IL  60067  USA.  Phone:  1-800-278-5666.  FAX:  1-847-359-8904.  E-mail:  lmxsales@lumex.com Web:  www.lumex.com
In Asia, contact Lumex's Asian Pacific Headquarters at 3F, No. 972, Sec. 4, Chung Hsing Rd., Chu Dung, Hsin Chu County, Taiwan, ROC.  Phone: +886-3-582-1124.  FAX:  +886-3-582-1154. Web (in Chinese):  www.lumex.com.tw

About Lumex:
For 30 years Lumex has been a global leader in the optoelectronics industry, with the broadest range of high efficiency, high performance LEDs and LCDs in the industry.  With thousands of standard products and a focus on semi-custom and custom designs, Lumex is a valuable resource for quality and innovation.  Lumex's optical range encompasses a wide spectrum including UV, visible and infrared wavelengths. Lumex's team of Technical Design Specialists are experts in collaboratively developing effective, smart solutions from the most complex design dilemmas.
Lumex has a global footprint with the worldwide headquarters outside Chicago and the Asian headquarters in Taiwan. With manufacturing capabilities in the United States, China, Taiwan and Thailand, Lumex is able to support over 23 end markets with more than 80,000 customers both directly and through our distribution channel partners. Over the last 30 years, the name Lumex has become synonymous with quality and performance around the world.

About ITW Photonics Group:
The ITW Photonics Group was created to bring together and build on the technical expertise of  individual companies that specialize in photonics technology and span the full spectrum of wavelengths.

The group consists of:
* Lumex - LED and LCD technology
* Cal Sensors - IR Detector and Emitter technology
* Opto Diode Corp - LED, Silicon Photodiodes and Electro-Optical Assembly technology

The synergy of these three industry front-runners provides an unsurpassed range of photonic capabilities within a broad spectrum of markets, including medical, military and industrial controls.  The ITW Photonics Group provides integrated solutions that encompass the technology and experience from all three business units, offering design engineers higher performance with greater feature enhancements.
