New Osram Duris S5 Color LEDs for Color Mixing Applications

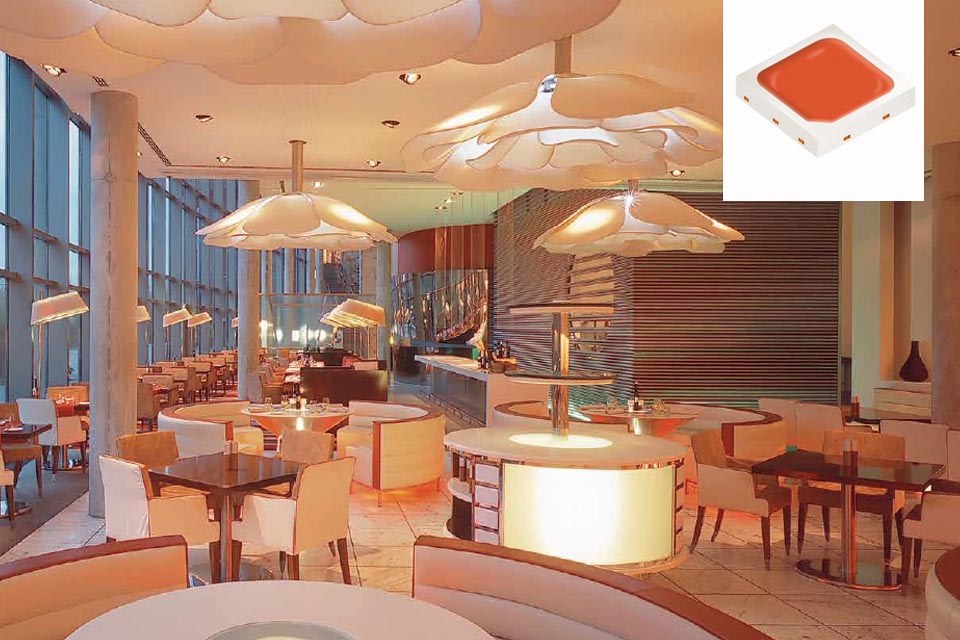

For smart lighting solutions and all kinds of colored lighting applications, customers now can rely on the new Duris S 5 Color LEDs from Osram Opto Semiconductors. There are four color versions – Red, Amber, Green and Deep Blue – offering high efficacy and excellent temperature stability. The footprint of 3.0 mm x 3.0 mm complies with industrial standards.

All red, amber, green and deep blue Duris S 5 Color versions can be used in color mixing systems, as well as in combination with white LEDs. They are all based on the same chip technology using phosphor conversion to generate the saturated red, amber and green colors. Therefore they all feature the same electrical behavior and are compatible with the Duris S 5 White, which greatly simplifies driver design. In addition, the red and amber Duris S 5 versions are best in their class for lumen maintenance and temperature stability between 25° and 85° Celsius, reducing the complexity of color management in different conditions.

The use of Red and Amber in combination with white LEDs can compensate for missing colors in the white spectrum, thereby increasing the color rendering index (CRI) with rich Ra values. Further characteristics include an epoxy-based package and a footprint of 3.0 mm x 3.0 mm that complies with industrial standards.

The green color versions offer an extremely high efficacy of 170 lm/W – a value which is three times higher than that of comparable standard green color LEDs. This reduces assembly costs as customers need fewer Duris S 5 Color LEDs to achieve the same brightness level for their applications and can be more flexible in their PCB design. Brightness levels are high: 28 lm for red, 45 lm for amber, 170 lm for green and 420 mW for deep blue.

Technical Data:
Footprint (industry standard) 3.0 mm x 3.0 mm
Forward voltage Vf at If=150 mA typ. 6.2 V
Color red: 620 nm
amber: 610 nm
green: 545 nm
deep blue: 450 nm
Brightness red: 28 lm
amber: 45 lm
green: 170 lm
deep blue: 420 mW
Emission angle 120°


For more information on the Osram Duris family and other LEDs for general lighting please refer to the Duris S5 section of the product catalog.

About Osram:
Osram of Munich, Germany is one of the two leading light manufacturers in the world. The company's portfolio covers the entire value chain from components – including lamps, electronic control gear and opto semiconductors such as light-emitting diodes (LED) – as well as luminaires, light management systems and lighting solutions. OSRAM has around 34,000 employees worldwide and generated revenue of more than €5.1 billion in fiscal 2014 (ended September 30). The company's business activities have been focusing on light – and hence on quality of life – for over 100 years. The company was listed on the stock exchanges in Frankfurt and Munich on July 8, 2013 (ISIN: DE000LED4000; WKN: LED 400; Trading symbol: OSR).
