Oslon Square from Osram OS Makes Even Better Use of Light Providing Maximum Flexibility @ Minimal Size

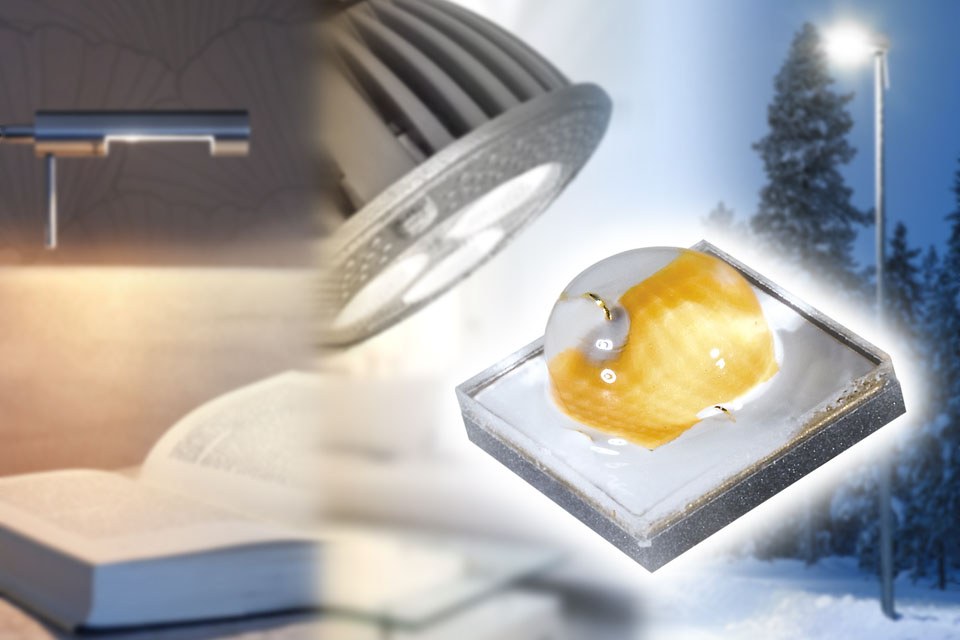

Osram Opto Semiconductors new LED, the Oslon Square, opens up a wide range of possible uses, including designer luminaires for the home or office, retrofits and street lights. The LED is available in many different versions with different color temperatures. It can be operated with different currents, making it extremely versatile. Its reflective package makes even better use of the light and increases system efficiency in all versions.

The Oslon Square can be used in a wide range of applications, from cool designer luminaires to bright street lights. And there is no need to change the manufacturing process for the lamps because this new LED has all the right credentials for widespread use – it is small, powerful and capable of operating on different currents. This one LED can therefore be used for manufacturing different products for different target markets.

Like the Oslon SSL, the Square measures only 3 x 3 mm, has a low thermal resistance of 4 to 3.8 K/W and is accommodated in a robust package which is suitable for outdoor use. Particularly worthy of mention is the high system efficiency that can be achieved with this versatile LED. The LED chip is enclosed by a reflective package that reflects light emitted at the side or at the back so that this light is usable. Light that is reflected back to the LED within a system – for example from a diffuser – can also be used in this way.

The Oslon Square EC is suitable for indoor applications in which a high quality of light is needed, for example in offices. With a color temperature of 3000 K it provides a warm white light and also offers high color stability over a wide viewing angle (120°). The CRI is at least 80. If the lighting needs to be particularly uniform a “fine-bin” order can be placed for this LED. At an operating current of 700 mA it achieves an efficiency of above 90 lm/W and a luminous flux of 200 lm and more. At 350 mA its efficiency passes the 100 lm/W mark.

The EC version is also suitable for retrofits. Thanks to its small dimensions of 3 x 3 mm it can be closely clustered and, like all the LEDs in this series, it benefits from its reflective package, both individually and within a system.

The Oslon Square PC and UW are designed for outdoor applications, for example in street lighting. They can be operated on currents of 200 mA to 1.5 A, making them interesting for other applications such as downlights and spotlights. The LEDs produce a neutral white to cold white light with color temperatures of 4000 K and 6000 K. And at 130 lm/W from 350 mA they are even more efficient than the warm white version. With a CRI of at least 70 (4000 K) and 65 (6000 K) these LEDs combine good quality of light with high efficiency.

Ivo Ivanovski, Product Manager for the Oslon Square series at OSRAM Opto Semiconductors, summarized the benefits of the new LED as follows: “Every application places different demands on lighting, and with the Oslon Square we are providing a platform for tailor-made solutions. The LED is available in different color temperatures with different CRIs and can be operated with different currents. By the end of the year we will have added further color temperatures to the portfolio. In addition to product features, we are offering logistical concepts with the Oslon Square that will make it easier for customers to develop luminaires.”

About Osram OS:
Osram AG (Munich, Germany) is a wholly-owned subsidiary of Siemens AG and one of the two leading light manufacturers in the world. Its subsidiary, OSRAM Opto Semiconductors GmbH in Regensburg (Germany), offers its customers solutions based on semiconductor technology for lighting, sensor and visualization applications. OSRAM Opto Semiconductors has production sites in Regensburg (Germany) and Penang (Malaysia). Its headquarters for North America is in Sunnyvale (USA), and for Asia in Hong Kong. OSRAM Opto Semiconductors also has sales offices throughout the world. For more information go to www.osram-os.com.
