Philips Lumileds Doubles Lumen Density and Center Beam Candle Power with Newest Emitter

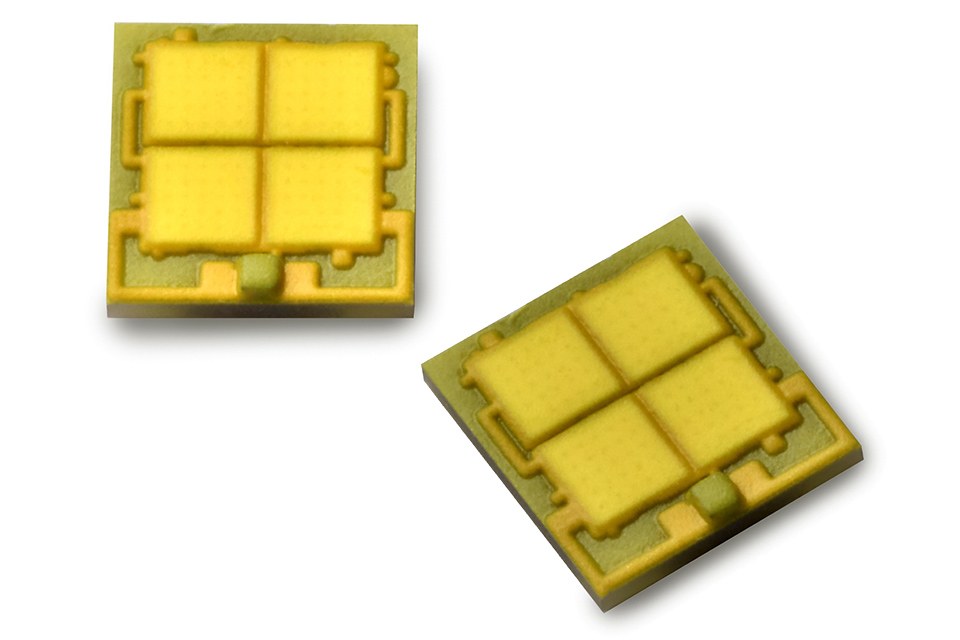

Philips Lumileds newest high-power emitter, the LUXEON MZ, enables customers to create tighter beam angles with higher lumen density at a lower cost than was previously possible. The LUXEON MZ emitter delivers excellent optical control in a 600-1000 lm package. Outdoor, industrial and area lamps as well as spotlights and downlights benefit from the faster qualification and time to market with the LUXEON MZ due to its design compatibility with the proven LUXEON M emitter.

Main Features:
•    Undomed 600-1000+ lm package providing highest lumen density for ideal optical control
•    Center beam candle power exceeding 50,0000 candela due to small LES
•    8% higher efficacy than closest competitor
•    Small source size and lowest Vf in the industry leading to greater design flexibility
•    Industry leading Vf (11.2V Typical, 11.7 Max)
•    Small LES (~4.2mm diameter)
•    Identical solder footprint to LUXEON M


“With the LUXEON MZ in combination with LUXEON M, designers can create two solutions with one optic and one PCB, thereby lowering overall costs. Our customers are already designing platforms with LUXEON M and LUXEON MZ to create multiple SKUs using less engineering resources,” explained Senior Vice President, Emmanuel Dieppedalle.

In an MR16 the LUXEON MZ delivers greater punch, achieving 50,000 candela center beam candle power (CBCP) compared to encapsulated emitters that only achieve half the beam intensity using the same sized optics. Flood lamps that formerly required large optics now deliver the necessary brightness and range with smaller optics and off-the-shelf drivers.

The LUXEON MZ features an industry leading forward voltage of 11.2V, a small light emitting surface of 4.2 mm diameter, and an undomed design to deliver smaller beam angles. Philips Lumileds is offering the emitter family across the full range of CCT and CRI (70, 80, 90) and CCT (2700-6500K) options.

Designers of outdoor and industrial luminaires, spotlights and other directional retrofit bulbs can now dramatically boost the LED punch delivered while also reducing beam angles by transitioning to Philips Lumileds LUXEON MZ.

About Royal Philips:
Royal Philips (NYSE: PHG, AEX: PHIA) is a diversified health and well-being company, focused on improving people’s lives through meaningful innovation in the areas of Healthcare, Consumer Lifestyle and Lighting. Headquartered in the Netherlands, Philips posted 2012 sales of EUR 24.8 billion and employs approximately 114,000 employees with sales and services in more than 100 countries. The company is a leader in cardiac care, acute care and home healthcare, energy efficient lighting solutions and new lighting applications, as well as male shaving and grooming and oral healthcare. News from Philips is located at www.philips.com/newscenter.
