Sharp's New MegaZeni LEDs: High Intensity LEDs, Which Retain a High Level of Light Quality

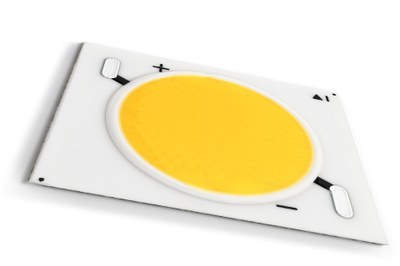

The new 15 and 25 W Mega Zeni models from Sharp are compact, lightweight, economical and extremely bright, whilst still providing a very high level of light quality. The new models produce a light output of up to 2550 lumen (depending on the module), a luminous flux of up to 102 lm/W and a long service life of 40,000 operating hours at a service temperature of 80°C. Sharp is thus setting new standards in light technology. Measuring 24 x 20 x 1.8 millimetres and with an aluminium ceramic plate as the carrier material, the 15 and 25 W variants offer the perfect solution to a whole range of lighting applications.

The 15 W Mega Zeni modules are operated using a forward voltage of 37 V and a forward current of 400 mA. With the 15 W Sharp Mega Zeni series, the round LED matrix consists of a total of 96 LEDs that are arranged in eight parallel-switched series of twelves. The luminous flux is between 1350 and 1520 lm (4000K 102 lm/W).

15W “Mega Zeni” (CRI 83) at IF = 400 mA

Model

GW5DMA27M04

GW5DMA30M04

GW5DLA40M04

LED Colour

Warm White

Warm White

Natural  White

Colour range
X / Y in CE 1931
coordinates

0,464

0,418

0,435

0,403

0,381

0,383

Number of dies

96

96

96

Dimension

[L x W x H] mm

24  x 20 x 1.8

24  x 20 x 1.8

24  x 20 x 1.8

Colour temperature [K]

2.700

3.000

4.000

CRI (TYP)

83

83

82

Light output [lm]

1350

1400

1520

Luminous efficacy [lm/W]

91

94

102

Supply voltage [V]

37

37

37

Life time
**at 80°C

40.000 h**

40.000 h**

40.000 h**

The 25 W Mega Zeni modules also have a forward voltage of 37 V but are operated using a forward current of 700 mA. With the 25 W series the round LED matrix consists of a total of 168 LEDs that are arranged in fourteen parallel-switched series of twelves. The luminous flux is between 2300 and 2550 lm (4000K 98 lm/W).

25W “Mega Zeni” (CRI 83) at IF = 700 mA

Model

GW5DMC27M04

GW5DMC30M04

GW5DLC40M04

LED colour

Warm White

Warm White

Natural White

Colour range
X / Y in CE 1931
coordinates

0,464

0,418

0,435

0,403

0,381

0,383

Number of dies

168

168

168

Dimensions

[L x W x H] mm

24  x 20 x 1.8

24  x 20 x 1.8

24  x 20 x 1.8

Colour temperature [K]

2.700

3.000

4.000

CRI (TYP)

83

83

82

Light output [lm]

2300

2370

2550

Luminous efficacy [lm/W]

88

91

98

Supply voltage [V]

37

37

37

Life time
**at 80°C

40.000 h**

40.000 h**

40.000 h**

The serial and parallel array of the LED matrix ensures fail-proof operation while offering the lowest possible thermal emission. The flat surface of the ceramic plate and the soldering points already in place make it possible to attach the modules to a suitable heat sink without too much effort or additional connecting material, thus guaranteeing excellent heat dissipation.

The colour temperature of the new white light LED lighting modules lies in the range of 2700 to 4000 Kelvin. With regard to the CRI values and the colour temperatures, the Mega Zeni LED modules correspond to the requirements of the international Energy Star programme. They can be fitted in new LED lighting systems as well as in places where light sources were previously used.

Until now it was difficult to make energy consumption savings in lighting without compromising on light quality in the process. Furthermore, in many challenging applications it was not enough to install just one LED as a source of lighting. In cases such as these, several LEDs were used, with the drawback that the light source took up more space, thus making it more difficult to control and adjust the individual LEDs. The Mega Zeni models will provide the perfect solution to these problems in the future. High intensity Mega Zeni LED modules from Sharp are suitable for use in street and object lighting as well as for applications indoors such as, for example, spot lighting, down lights and recessed ceiling light fixtures, etc.

Availability:
Sample models are now available from Sharp sales offices and distribution partners across Europe.

Please note: The availability of the products and components mentioned in this press release is expressly restricted to the European markets. For availability of these products and components outside Europe, please check with the Sharp Device Sales Offices in the respective markets.

About Sharp Microelectronics Europe:
Sharp Microelectronics Europe with its headquarters in Hamburg is a company division of Sharp Electronics (Europe) GmbH, a subsidiary of Sharp Corporation in Osaka, Japan. Sharp is a worldwide developer of core digital technologies shaping the next generation of electronic applications and products. With a portfolio of more than 2,000 components in the ranges of TFT LCDs in screen sizes up to 108 inches, high brightness white and colour LEDs, optoelectronics, CCD and CMOS camera sensors, photovoltaic components, RF-, IC- and LSI-components as well as advanced casing and integration technologies, Sharp Microelectronics Europe offers groundbreaking solutions in particular for applications in automotive electronics, mobile / communications technology, industrial automation, TV- and consumer electronics, e-signage and LED based lighting technology. Sharp is dedicated to the improvement of people’s lives and environmental protection through the use of advanced technologies. Technology and product development at Sharp is strongly determined by innovation, quality, usability and saving of resources.
