Products, Materials & Tools | Jan 22, 2014

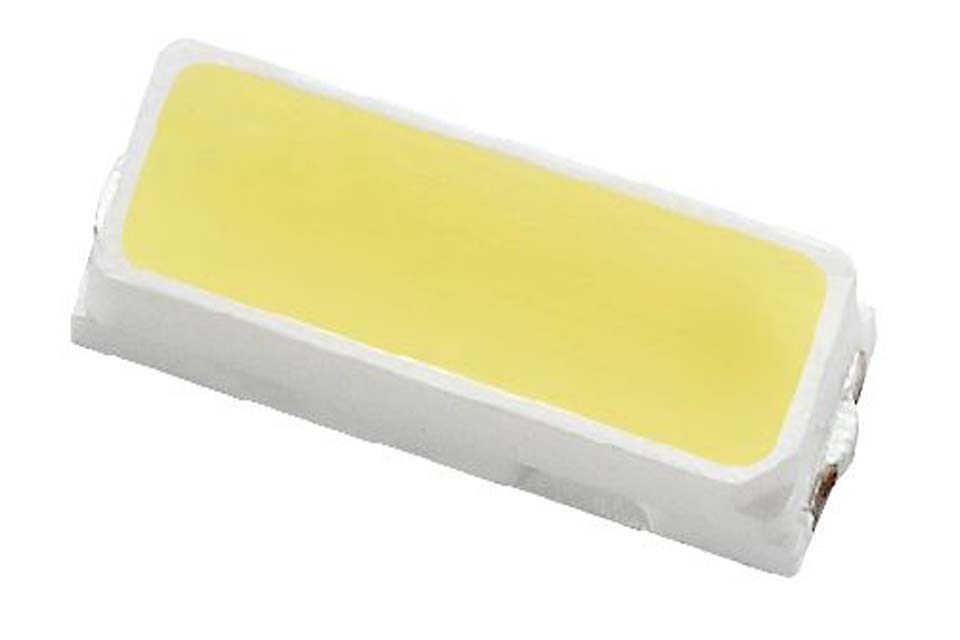

The Advantages of 4014 LED Illumination

- Variety of optional in different power LEDs - High luminous flux - Low attenuation -Compared with the incandescence lamp the energy has high cost performance -4014 apply to LED bulb, down light, spot light and panel, it can be prepared into various shaped devices, and suitable for the inconstant environment.

4014 Series:

Part number

Wavelength λd(nm)Cx/Cy

Emitting color

Luminous Flux(lm)

NTSC

Viewing angle 2θ1/2(°)





4014

0.2w

0.3/0.29

White

20-25

72%

120

0.265/0.24

White

19-23

72%

120

0.3w

0.265/0.24

White

28-36

72%

120

0.5w

0.265/0.24

White

44-52

72%

120

0.8w

0.265/0.24

White

67-76

72%

120

Contact us:
SHENZHEN REFOND OPTOELECTRONICS CO., LTD
Add: Building #1, 10th Industrial Zone, Tian Liao Community, Gong Ming Area, Guang Ming New District, SHENZHEN, CHINA
Tel: +86-755-6683 9118/6683 9339
Fax: +86-755-6683 9111/6683 9322
Web: www.refond.com
