SMD Push-to-Fix (P2F) by BJB. Solderable Mounting Elements for LED Boards

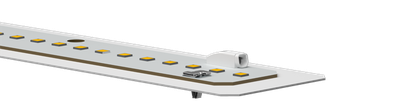

BJB has developed the solderable Push-to-Fix(P2F) SMD fixing element for an especially simple and quick mounting of LED boards in luminaire housings. It is suitable for Low- and Midpower LED-Boards in linear and flat luminaires. The outstanding feature of it is the pre-attachment of the spring clip, which takes place by means of a solder plate during the SMD mounting process. During the final installation, the board is then fixed in the luminaire housing by a simple click. This can be performed by hand as well as automatically.

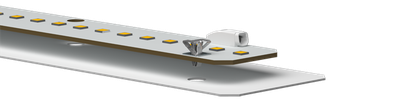

Ready to click: the fixing of LED boards with the SMD P2F element offers advantages in many aspects. On the one hand, this method avoids costly manufacturing processes with screws, minimizing at the same time the stocking expenses. The high-strength and at the same time elastic springs of the SMD P2F ensure a positive click-on connection resistant to vibration and shocks. Last, but not least, the low installation height above the board prevents unwanted shadow formation. This way, P2F convinces with many useful features and functionalities.

A solution to simplify the installation of LED boards into luminaire housings
The SMD P2F fixing element of BJB streamlines and simplifies the installation of LED boards and reduces the interference potential on the lighting quality. Supported are total thicknesses from 1.5 to 2.6 mm, calculated each for board and housing sheet. The components are supplied fully assembled as Tape-and-Reel. A corresponding Footprint as well as a cutout of 4.5 mm/± must be planned on the board for the automatic SMD mounting. The housing sheet needs a cutout of ø3.0 mm each.

For additional information please visit www.bjb.com or
http://www.bjb.com/index.php?pid=434442&languageid=4
for more product information or contact us below for samples.
