Products, Materials + Tools | Jan 13, 2009

Elecson Announces the First 5W Dimmable LED Bulb

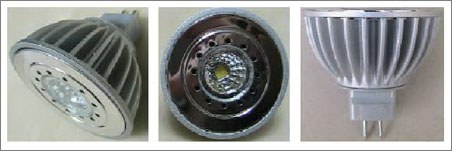

Elecson claims first 5W dimmable MR16 LED bulb for conventional or electronic transformers.
• The users can use inncandescent lamp dimming controller and halogen lamp electronic transformer to do the dimming, not need to have the specific LED dimming controller
• The dimming functions are integrated into the LED driver, not need additional Signal Pins (PWM Dimming Controller) for dimming. The bulb can keep only two pins that is exactly the same as traditional halogen bulbs.
• What the users should do is just to connect the bulb to traditional electronic transformer, which is used by halogen lamp, and incandescent bulb controller
• NO lower lifecycle Liquid Electrolyte Capacitors applied in the drivers, so the lifecycle of the LED Driver is the same with the LEDs, that guaranteed the extremely long use life of the bulb
• Our 4.2W EverBright is the only LED Lamp that can replace 50W Halogen MR-16 Lamps with similar brightness, and the payback from the saving power bill is only 6 months in condition that the bulb are 24hrs turned on. Most of other LED Lamps from other providers are not able to replace the 50W halogen lamps because of the insufficient brightness

Main Technical Information:

Name

EverBright

Housing

Aluminum; PC

Base

GX5.3 compatible base

Housing Color

Silver

Weight

46g

LED Color

Warm White/Pure White

Color Temperature

WarmWhite:3000K

Pure White: 6500K

Working Temp.

-20 °C-40°C

Storage Condition

-40 °C-80°C

Power Requirement

12VAC(20-100Khz)

Power Consumption

5W (Max)

Transformer Spec.

12V low voltage magnetic/electronic

Humidity

0-90% non condensed

Body Temp.

70 °C

MTBF

> 20000 hours

Beam Angle

70 + 3 °

CRI

> 75
