Products, Materials + Tools | Aug 02, 2012

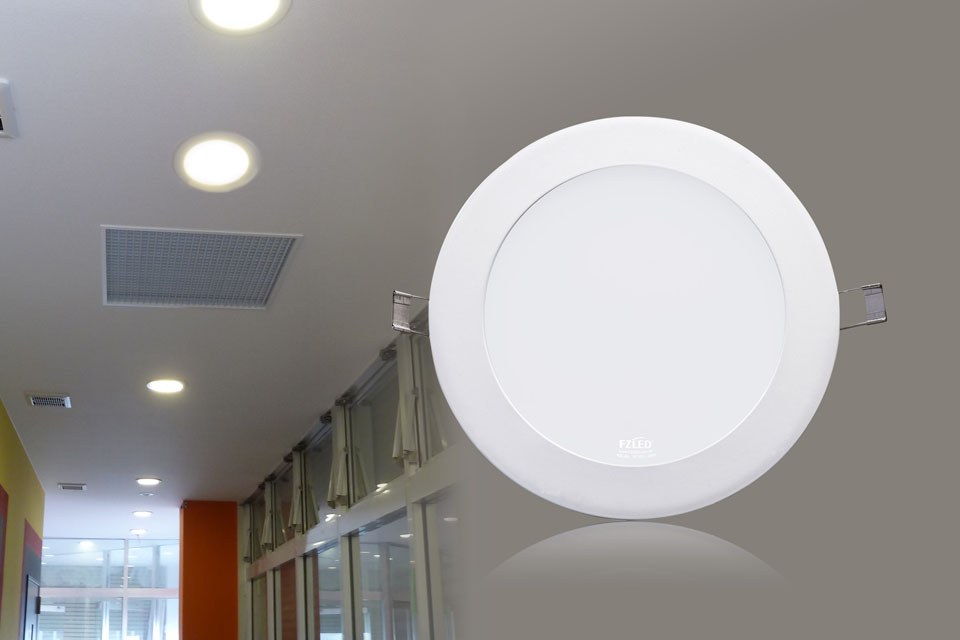

FZLED Introduces New 4-inch Downlight Series

FZLED Inc., the leading maker of LED lighting products, today introduces a new size 4-inch LED downlight featuring cutting-edge light guide technology. It uses Low Power LED light source series products which is simple money-saving replacement for standard 4-inch recessed downlight.

Applications:
• Indoor Lighting
• Easy 4-inch downlight replacement
• Architectural Lighting
• Mood Lighting
• Flood Lighting
• Biological Lighting

Features:
• Energy Saving
• No heat, No UV, or IR light radiation
• Light source: Low power LEDs
• Long lifetime, better than 20,000 hours (L70)
• Ra > 75 for white light
• Power consumption up to 9W for FZL-DL04-00
• High power driver efficiency > 85%
• Power Factor > 0.95
• CE, FCC approved (Driver)

Specifications:
• Power Consumption – 9W (±10%)
• Input Voltage – AC 100-240V
• CCT – 3000K (WW) or 4000K (NW) or 6000K (CW)
• Luminous Flux (lm) – 400 (±10%) with 3000K or 470 (±10%) with 4000K or 560 (±10%) with 6000K
• CRI – Greater than 80 (greater than 80 with 3000K CCT model)
• Operation Temperature – -20℃ to 40℃
• Beam Angle – 120°
• Dimension – Ø120 X 33.5 (mm)
• Net. Weight – 0.48 (Kgs) with driver
• Dimming Functionality – Non-dimmable/TriAC dimmable

The energy-efficient, low-maintenance FZL-DL04-00 series downlight has long lifetime for min. 20,000hrs, high luminous efficacy and reduces environmental pollution.

With several advanced features, the FZL-DL04-00 series is now the most obvious downlight choice for all indoor, architectural, biological, mood and flood lighting applications. Reinforcing FZLED's well reputation for quality, the new LED downlight not only meet users’ satisfaction, but also bring a high-quality lighting solution with energy-saving and environmentally-friendly.

The size 6-inch & 8-inch downlight already include in FZLED’s innovative downlight series, it introduces light guides to direct part of the LED light output to the sides. FZLED is glad to provide the new size 4-inch for customers, bringing more choices of use. The small size is suitable to use on the showcase display, counter spotlight, and any use of indirect lighting –for both residential and commercial lighting, new construction or retrofit application.

FZL-DL04-00 series is an extremely versatile down light, with a choice of three color variations, including warm white (FZL-DL04-00-WW-09), natural white (FZL-DL04-00-NW-09) and cool white (FZL-DL04-00-CW-09). The WW-9's warm 3000K light provides 400 lm with a Color Rendering Index (CRI) of better than 80, while the CW-09 achieves 560 lm with its bright 6000K illumination. Moreover, it offers both switch TriAC dimmable & non-dimmable options.

All models content the widest range of lighting applications with an optimum 120º beam angle. The FZL-DL04-00 downlight can accept the input voltages from 100 to 240 volt, and an operating temperature range from -20º to 40ºC - making them suitable for majority of places worldwide.
FZL-DL04-00 series is packed with useful elements designed to satisfy customers’ demand, including the stylish look, durable function, steel, aluminum and PMMA plastic construction. FZLED's latest LED downlights will outlast competing products even as they save energy for customers.

Offering an electrical efficiency greater than 80%, thermally-optimal design, and an outstanding energy-to-light conversion ratio, FZLED is excited to expand its range of lighting products with the most advanced, cost-effective downlight available on the market presently.

FZLED's 9-Watt FZL-DL04-00 Series LED Downlights are now available in Taiwan, Singapore and Thailand initially. FZLED is eager to work with new distributors worldwide in order to bring these attractive, innovative, energy-saving, and high-performance lighting solutions to consumers everywhere.

About FZLED:
FZLED is a Taiwan-based developer and manufacturer of high-performance LED lighting products. As a sub-division of FZTech Inc., FZLED's products have superior mechanical and thermal designs, utilizing the expertise of FZTech. Committed to excellence, FZLED follows a strict TQC for the entire manufacturing process, and conducts R&D projects continuously in an effort to create LED lighting solutions that offer light-weight, high-quality, environmentally-friendly, innovative, and thermally-optimized products to consumers. For more information visit FZLED online at www.fzled.com.tw.
