Products, Materials + Tools | Nov 24, 2011

FZLED Launches LED Panel Lights for Art, Decor, and Commercial Spaces

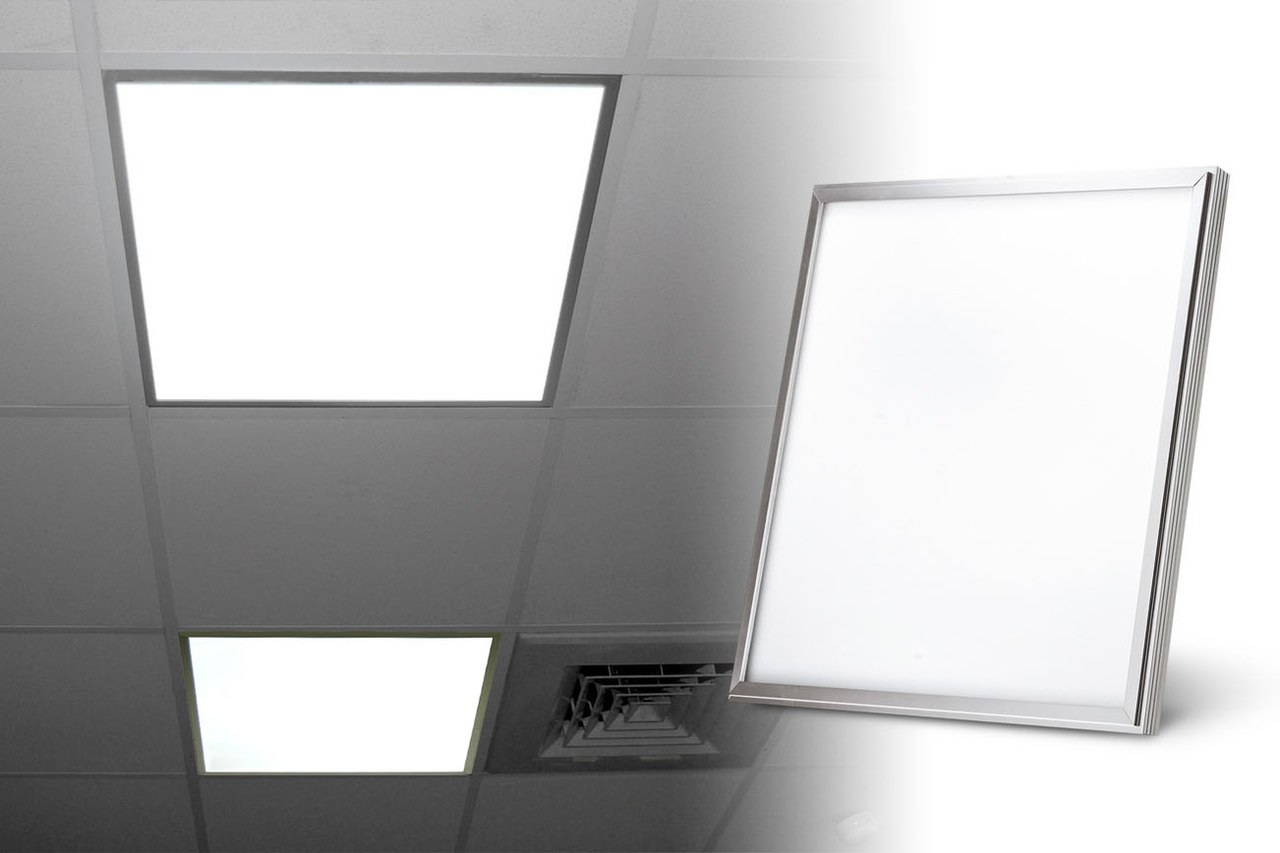

FZLED, a leading maker of LED lighting products, is extremely pleased to announce two new series of ultra-thin, long lasting, easy to install 52W LED panel lights. The PL-60-00 series of panel lights are 60 centimeters long (approx. 2 feet) and the PL-120-00 series are 120 centimeters long (approx. 4 feet). These fantastic new panel lights are specifically designed to be energy-saving replacements for fluorescence tube commonly used in large spaces like government buildings, offices, gymnasiums, subways, and shopping malls.

Common Specifications of the FZL-PL-60-00 and the FZL-PL-120-00 LED panel light series:
Power Consumption: 52W
Input Voltage: AC 100-240V
CCT: 3000K (WW) or 4000K (NW) or 6000K (CW)  (±10%)
Luminous Flux (lm): 2400 (±10%) with 3000K or 2500 (±10%) with 4000K or 3500 (±10%) with 6000K
CRI: Greater than 80 (greater than 75 with 6000K CCT model)
Operation Temperature: -20℃ to 40℃
Beam Angle: 120°

Physical Specification of the FZL-PL-60-00:
Dimension: 595 X 595 X 13 (mm)
Net. Weight:  5.0 (Kgs) with driver
Dimming Functionality: TriAC dimmable or non-dimmable

Physical Specification of the FZL-PL-120-00:
Dimension: 1195 X 295 X 13 (mm)
Net. Weight: 5.2 (Kgs) with driver
Dimming Functionality: TriAC dimmable or non-dimmable

Both series of panel lights have wide illumination ranges, multiple options for color temperature, as well as voltage and dimming optimizations that meet diverse needs. Like other FZLED products, these new panel lights have lifespans of more than 35,000 hours. In other words, they will stay lit, continuously, operating at very low power consumption levels, for nearly four years without diminished quality of lighting. Furthermore, these panel lights are quick and easy to install because they require no starters or electrical ballasts. Consumers can mount them in as little as five minutes without needing to call any experts.

FZLED has gone above and beyond in the PL-60-00 and PL-120-00 series of panel lights by integrating features that make them extremely useful in lighting art and decor. Galleries, libraries, museums, and show rooms are sure to benefit from FZLED’s panel lights in creating more optimally lit exhibits. These extremely slim (13mm) panel lights have been chicly designed to be able to be suspended by four steel cables, allowing users to bring lighting down from ceilings when desired (cables sold separately). Furthermore, because they are available with TriAC dimming capabilities, these panel lights can be used as picture frames, etc., illuminating pictures from behind and achieving exceptional artistic effects.

Emitting no heat, UV, or IR rays, FZLED’s panel lights are extraordinary in providing glare free, soft light and saving users over fifty-percent in electricity as compared to traditional T8 tubes, while delivering simply beautiful illumination.

About FZLED:
FZLED is a Taiwan-based developer and manufacturer of high-performance, energy saving LED lighting products. Utilizing the expertise of their parent-company FZTech Inc., FZLED's products beat the competition with low-heat emissions and long lifetimes. Committed to excellence, FZLED enforces strict quality controls for the entire manufacturing process and conducts R&D projects continuously, in an effort to create high-quality LED lighting products for consumers that are light-weight, environmentally-friendly, and thermally-optimized. For more information visit FZLED online at www.FZLED.com.tw.
