Home > Systems & Applications > Lamps & Luminaires > GlacialLight Announces New GL-BL190DA with 3-in-1 Dimming Feature
High Bay | Luminaires | Systems + Applications | Outdoor Applications | Harsh Enviroment | Jul 03, 2018

GlacialLight Announces New GL-BL190DA with 3-in-1 Dimming Feature

GlacialLight, the LED lighting division of GlacialTech Inc., announces the dimmable GL-BL190DA High Bay Light. With up to 23,000 lumens, it comes 124 lm/W lighting efficiency. It features a 4 kg lightweight yet IP66 rugged outdoor ready design and available with beam shaping options including 70 and 120 degree lenses to suit various lighting applications.

Features:
•    High system efficacy up to 124 lm/W
•    23,000 lumen output for high bay lighting and outdoor lighting
•    4 kg lightweight design
•    IP66 rated rugged for outdoor use
•    3-in-1 dimming function available
•    70 degree lens and 120 degree lens are available
•    High bay model features dual cable design for added safety
•    Lampshades available for 60 degree and 120 degree (optional accessory)
•    Outdoor-ready 180 degree rotating stainless steel mounting bracket available (optional accessory)
•    Lux Enhancer increases 80% Lux with tighter beam angle and increased throw (optional accessory)

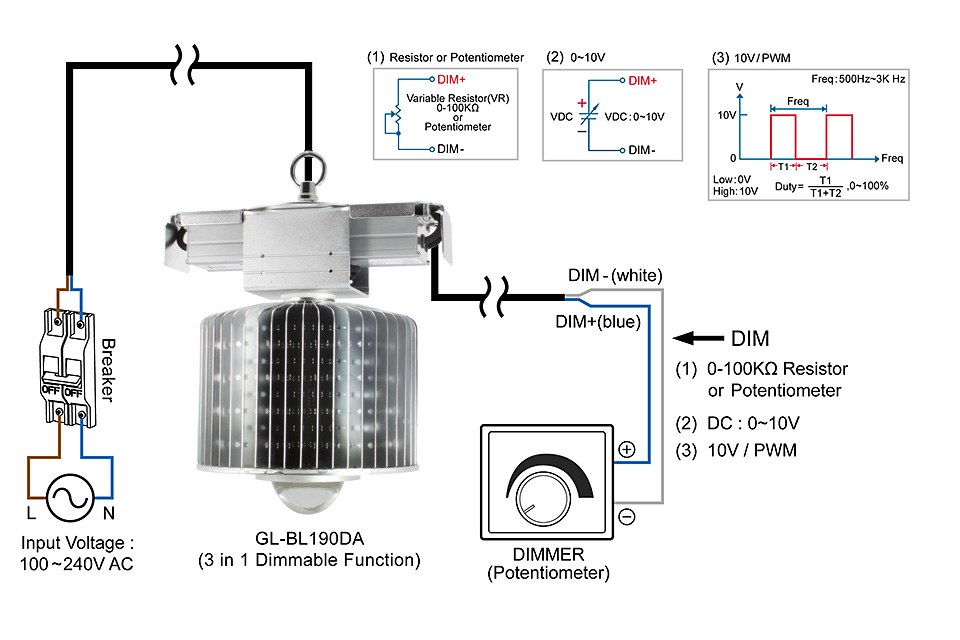

The GL-BL190DA provides 3-in-1 dimming solution with GlacialPower driver inside. It supports analog DC dimming controlled by an external voltage from 0 to 10V, and offers PWM dimming, as well as resistance dimming mode controlled by resistor ranging from 0 to 100 KΩ. Thanks to the dimmable function, making the GL-BL190DA a more environmentally friendly, deliver the light depends on customer’s need.

Specifications:

Type

GL-BL190
DA-WW

GL- BL190
DA-NW

GL- BL190
DA-CW

Energy Used

185 W

Rated Life

30,000 Hours

Input Voltage

100-240 V AC

Power Factor (PF)

0.98 @120 V AC, 0.96 @240 V AC

CCT (color)

3000 K

4000 K

5000 K

Luminous Flux

21400 lm

22200 lm

23000 lm

System Efficacy

116 lm/W

120 lm/W

124 lm/W

CRI (Minimum)

80

80

80

Beam Angle

70° / 120° (Without Lampshade)

Dimension

267 x Ф210 x 350 mm (Without Lampshade)

IP Rating

IP66

Operation Temperature

–40°C ~ +50°C *(Note)

Bundled Driver

GP-LS240P-60CA 1E
(Driver Output : Constant Current 3.2 A, 30~60 Vdc)

Net Weight

4 kg (Without Lampshade)

Package

1 Carton

*Note :–40°C ~–20°C (Support for 200-240V AC Input Voltage)

For more information about the GL-BL190DA, please visit http://www.glaciallight.com/products/LED-bay-light-BL190DA.htm

Comparison with Lux Enhancer:

Type

GL-BL190DA-CW-70D without Lux Enhancer

GL-BL190DA-CW-70D with Lux Enhancer

Input Power

185 W

185 W

Luminous Flux

23000 lm

20000 lm

CCT (color)

5000 K

5000 K

Beam Angle

70°

45°

System Efficacy

124 lm/W

108 lm/W

Lux @ 1M (E-Max)

22443

40455

Lux Increment ( % )

-

80%

Luminous Flux
Decrement ( % )

-

-13%

The GL-BL190DA offers a variety of mounting options, allowing it to be used in bay lighting, flood lighting or spot lighting applications. For bay light installations, it features a dual cable mount for extra safety. The optional lampshade has 60 and 120 degree versions for customer choice. For flood or spot light installations, a stainless steel mounting bracket is available with 180 degree adjustability. For a tighter beam with increased throw, the optional Lux Enhancer accessory can narrow the beam angle to 45 degree and increase 80% lux level for powerful spot light application.

About GlacialLight:

GlacialLight, the lighting division of GlacialTech, manufactures LED lighting solutions for indoor/outdoor applications and both residential and commercial uses. As well as having a wide range of finished LED lighting products, GlacialLight also offers its clients the option of customizing products for specific needs. Please visit the company homepage at www.GlacialLight.com
