Products, Materials + Tools | Mar 26, 2014

Light Efficient Design Introduces Compact Lamp LED Retrofit Solution

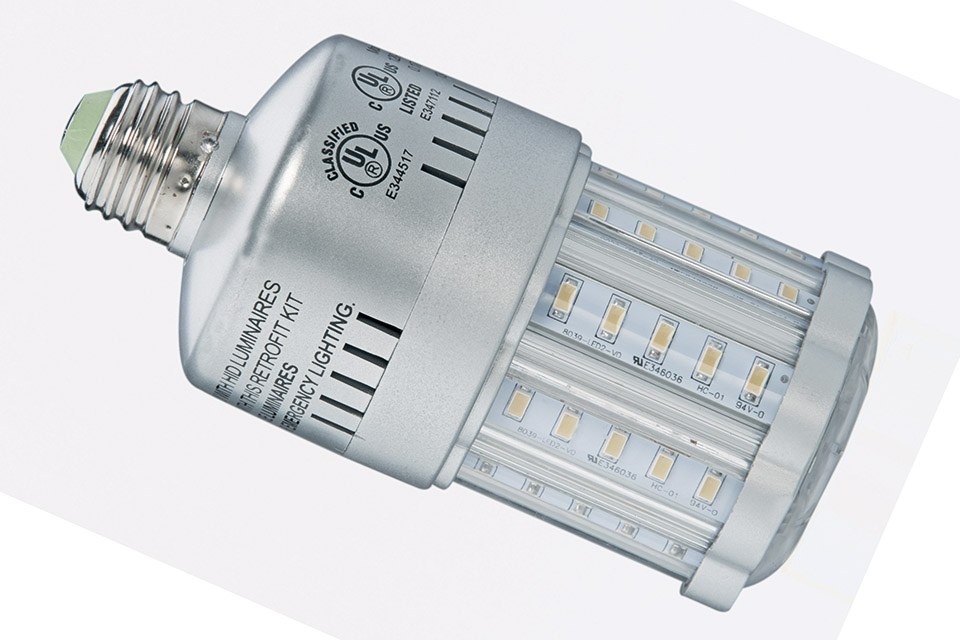

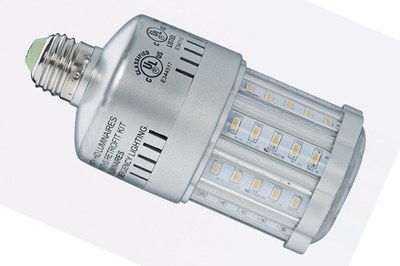

Light Efficient Design introduces the LED-8039, a compact LED retrofit lamp that replaces 70W HID lamps. Measuring less than 6 inches tall and less than 3 inches wide, the LED-8039 is suitable for applications such as walkways and steps, and can squeeze into spots that other lamps can’t.

The LED-8039 is a 120-277 volt, medium base mounting that integrates LED technology into a powerful yet energy-saving LED stubby outdoor post top lamp. UL-damp-rated, the versatile LED-8039 can be used in indoor or outdoor applications in a bollard or explosion-proof jelly jar light. Top mounted LEDs provide uniform light distribution.

Retrofitting with the LED-8039 is a simple, three-step process: 1) the ballast is disconnected from the current lamp; 2) power is fed straight to the socket; 3) the new LED lamp is installed. Costs stemming from total fixture replacement are eliminated and the lamps can be easily upgraded.

As with all Light Efficient Design LED retrofit lamps, the LED-8039 uses active cooling instead of heat sinks to dissipate heat and insure an exceptionally long life for the lamp.

Available in 3000K, 4200K, and 5700K. UL listed. 5-year warranty.
For additional information, please visit www.led-llc.com

About Light Efficient Design:
A division of TADD, LLC, Light Efficient Design was founded as a supplier of quality LED retrofit products with a focus on the Electrical Distribution channel. Light Efficient Design’s product line includes LED for HID screw-in retrofits, as well as niche products such as PL, Candelabra, and Linear. Light Efficient Design supplies a full line of LED products to meet commercial, industrial and municipal demand.
