Products, Materials & Tools | May 24, 2011

Multiform to Release the MultiWall GII at Beijing PALM EXPO 2011

Multiform will be releasing the latest addition to their range of Professional LED lighting fixtures on the booth of their international distributor Adelto the China International Exhibition Centre in Beijing (Hall 1, 2nd Floor, Booth B202 ) May 26-29, 2011

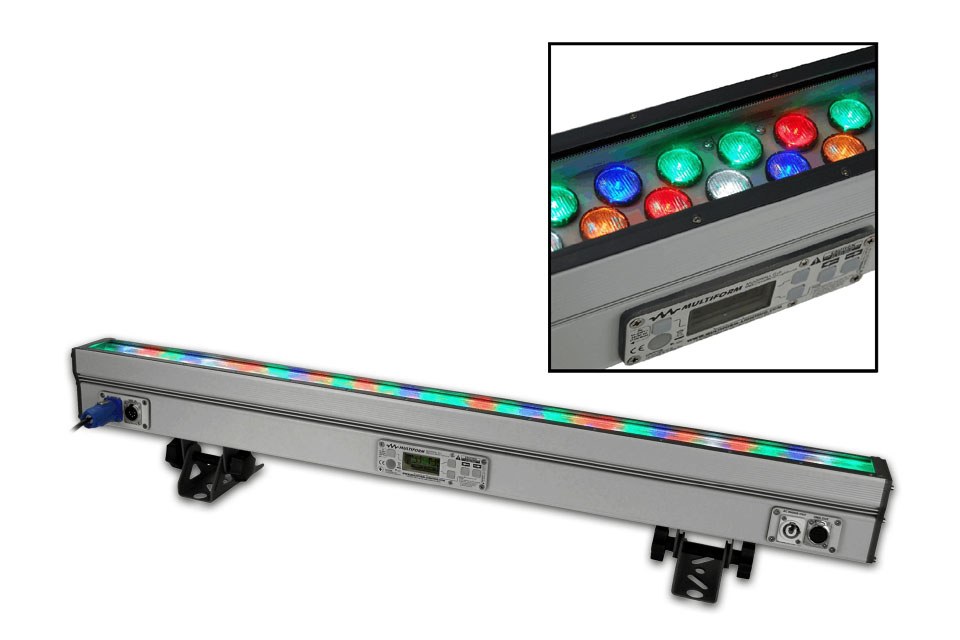

The new MultiWall Gll - HP5 light batten is designed for indoor or outdoor use with an IP20 / 65 rating. It incorporates 62 x 1W - R,G,B,A & W LEDs to provide the widest range of colours. Fitted with XLR and PowerCon connectors , a conversion kit is supplied to replace these with PG9 fittings for outdoor use.

The 62W - 3150lm MultiWall GII - HP5 provides 3 - 7 Ch. DMX control using RGBAW or advanced HSL colour mixing, plus 19 preset colours, 23 crossfades and Sound to Light. The large, user friendly LCD display also allows control of White Balance, Dimmer Curve and Modulation Frequency. The new, DISSIMAX™ cooling system provides for the first time, extended life-time expectation for a convection cooled linear fixture using MCU control and a limiter.

The luminaire is housed in a 1.01m extruded aluminium body with grey UV-resistant PE powder coating and lower M10 nut slot In addition 2 x Multi-purpose, variable position aluminium brackets are provided with hook mounting holes and optional 2xCamlock quarter-turn fast mounting receptacles.

In addition to this the company will also be displaying some additions to their range of OEM products . The Lumicraft - LumiSpot HP 18-3 LED fixture and the Prosonar FXM2500 DJ-Mixer.

For further information on Multiform products please visit
