Sharp Introduces Nine New LED Lamps for Home Use

Sharp Corporation will introduce into the Japanese market nine models of LED lamps featuring outstanding environmental performance, including high energy efficiency, long service life, and free of hazardous mercury.

Because these lamps have the same standard screw-in base and fit in the same sockets as ordinary incandescent lamps, they are simple and easy to use as replacements for ordinary lamps.

The model DL-L60AV LED Lamp features an Adjustable Color Function that enables users to change the color of the white light emitted from the lamp using an accessory remote control, an industry first for an LED lamp*1. Users can select from seven different shades of white ranging from a pleasing warm white to a cooler daylight white to match the weather, the season, time of day, purpose, or other preferences. This model also features a built-in Dimmer Function to adjust brightness. Together, these features allow users to select the illumination they like best to complement a diverse range of interior settings by using a single remote control to change the color and brightness of the light.

In addition, the model DL-L601N LED Lamp delivers a brightness of 560 lumens, among the highest in the industry for LED lamps*1 having nearly the same size and shape as ordinary incandescent lamps.

LED lamps consume a small amount of electricity and contribute to reducing CO2 emissions by saving energy. The models DL-L401N/L LED Lamps offer extremely economical operation, and can be run for approximately 11 hours at a cost of only one yen*2. All models feature a service life of 40,000 hours.

In the future, Sharp will be offering more such uniquely featured LED lamps with outstanding environmental performance to provide a diverse range of lighting options.

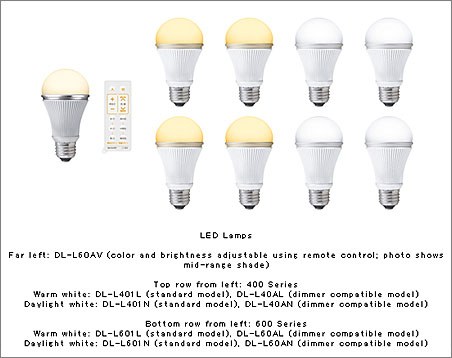

Product name Model name Type Suggested retail price Date of introduction in Japan Monthly production
600 Series LED Lamp DL-L60AV Color adjustable (warm white to daylight white); brightness adjustable (dimmer function); accessory remote control unit Open July 15, 2009 Total 200,000 units
DL-L60AN Daylight white, dimmer compatible*3
DL-L60AL Warm white, dimmer compatible*3
DL-L601N Daylight white
DL-L601L Warm white
400 Series LED Lamp DL-L40AN Daylight white, dimmer compatible*3
DL-L40AL Warm white, dimmer compatible*3
DL-L401N Daylight white
DL-L401L Warm white

Major Features

1. Adjustable Color Function enables users to change the color of light from the lamp ranging from warm white to daylight white, an industry first*1, using the remote control (model DL-L60AV).
2. Brightness of 560 lumens, among the brightest in the industry*1 for an LED lamp having nearly the same physical size and shape as a standard incandescent lamp (model DL-L601N).
3. Outstanding energy efficiency allows lamp to be used for approximately 11 hours for a cost of one yen*2 (models DL-L401N/L).
4. Long service life with a design lifetime of 40,000 hours.
5. Bright, even illumination.

Features

Adjustable Color Function enables users to change the color of light from the lamp ranging from warm white to daylight white, an industry first, using the remote control (model DL-L60AV):  The model DL-L60AV features an Adjustable Color Function, an industry first for an LED lamp, enabling the shade of the white light from the lamp to be changed from a pleasing warm white (equivalent to the light from a conventional incandescent lamp) to a cooler daylight white (equivalent to bright daylight) using an accessory remote control. The user can select his or her preferred shade of white according to the weather, season of the year, or time of day. For example, a user can select warm white during the winter or at dinnertime when a relaxing atmosphere is desired, or crisp cooler daylight white during the summer or in the morning for a refreshing wake-up. This model also features a built-in Dimmer Function, and together, these features enable users to enjoy a diverse range of illumination settings by changing the brightness and color of the white light using just one remote control. This lamp can also be used without the dimmer in the usual way.

Brightness of 560 lumens, among the brightest in the industry for an LED lamp having nearly the same physical size and shape as a standard incandescent lamp (model DL-L601N): The models DL-L601N/DL-L60AN adhere closely to the classic globe style of ordinary incandescent lamps while delivering a brightness of 560 lumens, among the brightest in the industry for an LED lamp having nearly the size and shape of a standard incandescent lamp for general illumination.

Outstanding energy efficiency allows lamp to be used for approximately 11 hours for a cost of one yen (models DL-L401N/L): These lamps offer outstanding energy efficiency and consume only very low amounts of power—4.1 W for the DL-L401N/L models, and 7.5 W for the DL-L601N/L models—enabling them to be used for approximately 11 and 6 hours, respectively, for the cost of just one yen.

Long service life with a design lifetime of 40,000 hours: The service life of these lamps is 40,000 hours, approximately 40 times longer than ordinary incandescent lamps. Even used for 10 hours a day, these lamps would not need to be replaced for more than 10 years.

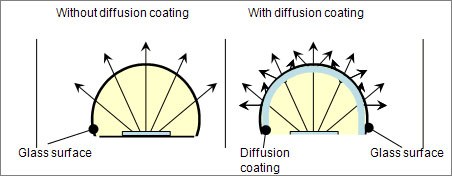

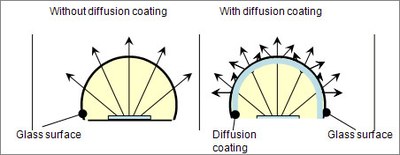

Bright, even illumination: LEDs are point-like sources of light and are highly directional*4, but applying a diffusion coating to the inside of the glass globe provides bright, uniform illumination and prevents uneven color and variations in light intensity.

Lights instantly at full brightness: LED lamps light at full brightness immediately after being switched on. In addition, there is no deterioration in intensity or longevity even after repeated cycles of being switched on and off. Thus, LED lamps are ideal for use in bathrooms, entryways, hallways, lavatories, and other areas where lights are turned on and off frequently.

Clean; tends not to attract insects: These LED lamps emit almost no light in the 350-nm (ultraviolet) waveband that tends to attract insects, thus minimizing dirt and contamination of the lighting fixture from flying bugs and insects.

Other Environmental Features
• Lead-free solder
• Contains absolutely no specific bromine flame-retardant agents

Safety Design
• Fire-retardant materials

Specifications

600 Series

Model name DL-L60AV DL-L60AN DL-L60AL DL-L601N DL-L601L
Adjustable color/dimmer function? Yes
Dimmer compatible? Yes Yes
Equivalent light color Daylight white to warm white Daylight white Warm white Daylight white Warm white
Color temperature 5000 K to 2800 K 5000 K 2800 K 5000 K 2800 K
Total luminous flux 450 lumens (daylight white) to 300 lumens (warm white) 520 lumens 330 lumens 560 lumens 360 lumens
Rated voltage 100 V
Rated current 85 mA 125 mA 76 mA
Power consumption 8.2 W 8.6 W 7.5 W
Weight 170 g 158 g 158 g
Dimensions 60 mm-dia. x 114 mm
Lamp base E26 standard screw base
Design life 40,000 hours

400 Series

Model name DL-L40AN DL-L40AL DL-L401N DL-L401L
Dimmer compatible? Yes Yes
Equivalent light color Daylight white Warm white Daylight white Warm white
Color temperature 5000 K 2800 K 5000 K 2800 K
Total luminous flux 340 lumens 235 lumens 340 lumens 235 lumens
Rated voltage 100 V
Rated current 85 mA 71 mA
Power consumption 5.8 W 4.1 W
Weight 118 g 118 g
Dimensions 60 mm-dia. x 109 mm
Lamp base E26 standard screw base
Design life 40,000 hours
Note: Design and specifications are subject to change without prior notice.
The above information is true and accurate at the time of publication. Manufacture, sale, price and specifications of products may be subject to change.
