Technology | May 17, 2010

Successful Extraction of Light from Semiconductors with the Highest Efficiency

Wang XueLun, Near-Field Nano-Engineering Group, Nanotechnology Research Institute, and the National Institute of Advanced Industrial Science and Technology, succeeded in extracting light from a semiconductor into air with the highest efficiency.

For this purpose, ridges were fabricated on a semiconductor surface, and then, the fabricated ridges were coated with a silicon dioxide (SiO2) layer. The mechanism of the light-extraction with high efficiency was also clarified.

Strong total internal reflection normally occurs at the interface between a semiconductor and air because the refractive index of a semiconductor material is usually far greater than that of air. For this reason, efficient extraction of the light generated in a semiconductor material into air becomes very difficult. For example, in the case of light-emitting semiconductor materials deposited on flat substrates, one can extract only a few percent of the total amount of light generated in the semiconductors (gallium arsenide (GaAs): ~2%, gallium nitride (GaN): ~4%). This serious problem hinders the improvement of the efficiency of various semiconductor optical devices such as light-emitting diodes (LEDs).

Previously, it was discovered that the aforementioned light-extraction efficiency could be significantly improved by fabricating narrow ridges on the surface of semiconductor materials. In this study, we fabricated ridges on a semiconductor surface and coated the ridges with a thin film made of a material (e.g., SiO2) whose refractive index was lower than that of the semiconductor. The light-extraction efficiency in this case was 1.5 times higher than that achieved in the previously discovered method. Our new method can be used to improve the efficiency of various semiconductor optical devices, especially LEDs, which are promising candidates for energy-efficient light sources that can be used in lighting and display applications.

The results of the present study were presented on March 20, 2010, at the 57th Spring Meeting, 2010, of the Japan Society of Applied Physics to be held at Shonan Campus, Tokai University.

It has been demonstrated that light can be extracted into air with very high efficiency (~50%) by making use of the newly discovered evanescent wave coupling, i.e., coupling of the evanescent waves generated at small ridge structures formed on a substrate with V-shaped grooves (AIST press release on March 3, 2009).

Two evanescent waves (a special kind of light existing only in the vicinity of the reflection interface) are generated symmetrically on the two sidewalls of a ridge upon the total reflection of light from a quantum well light-emitting layer formed beneath the flat plane at the top of the ridge (Fig. 1). This total reflection occurs at the sidewalls of the ridge. Coupling of these two evanescent waves occurs when they meet at the flat plane at the top of the ridge; the lateral width of the flat plane is smaller than the wavelength of emitted light. Consequently, the evanescent waves are efficiently transformed into light that propagate in air. In the present study, the light-extraction efficiency has been enhanced by making further improvements to this technique.

Details of the Research:
The sample used in the present study is a GaAs/aluminum gallium arsenide (AlGaAs) nanostructure grown on a GaAs substrate with V-shaped grooves by metal organic chemical vapor deposition (MOCVD) (Fig. 2). Small ridges each with a flat plane and two inclined sidewall planes are formed between two adjacent V-shaped grooves. The lateral width of the flat plane (W in Fig. 2) is approximately 0.5 µm. After the growth of the GaAs/AlGaAs nanostructures, a 150-nm-thick SiO2 layer is deposited on the sample surface by plasma CVD.

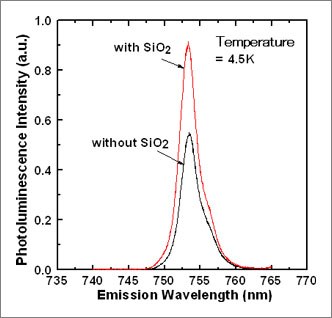

 Photoluminescence studies revealed that after coating the sample surface with SiO2, the emission intensity of the GaAs quantum well light-emitting layer formed beneath the ridge-top flat plane was enhanced by a factor of approximately 1.7 (Fig. 3). The improvement in the emission intensity was attributed to the enhanced light-extraction efficiency due to the SiO2 layer. Similar enhancement in the photoluminescence intensity was observed when SiO2 layers with thicknesses in the range 100–600 nm were used. This enhancement was also found to occur at room temperature. By quantitative analysis of the spatial emission pattern shown in Fig. 4, we found that the light-extraction efficiency achieved with the SiO2-coated sample was at least 1.5 times higher than that achieved with the uncoated sample. Such a high efficiency in high-refractive-index semiconductor materials (refractive index > 3) such as GaAs and aluminum gallium indium phosphide (AlGaInP) cannot be achieved with conventional techniques.

Theoretical simulations of the electromagnetic field intensity were performed to investigate the mechanism underlying the SiO2-layer-induced enhancement of the light-extraction efficiency. As shown in Fig. 5, in the sample coated with the SiO2 layer, evanescent waves were generated at the semiconductor–SiO2 and SiO2–air interfaces. Consequently, strong coupling of the evanescent waves occurred at the ridge-top flat plane, and thus, the amount of light that could be extracted into air was increased.

Although observed in the case of SiO2, the abovementioned phenomenon can be found in the case of other materials whose refractive index is smaller than that of the semiconductor employed. Such materials include transparent conductive materials such as Indium tin oxide (ITO) and zinc oxide (ZnO), which are widely used to form current-spreading layers in LEDs. Therefore, by using the present technique, one can achieve high light-extraction efficiency without making any significant change to conventional LED fabrication processes.

Future Schedule:
The present results were obtained by carrying out photoluminescence studies on GaAs/AlGaAs-based materials. Efforts are being made to realize the enhanced light-extraction efficiency in the case of materials that are used in visible LEDs, such as AlGaInP-based and GaN-based materials, and to develop visible LEDs with ultrahigh light-extraction efficiency.
