Products, Materials + Tools | Jul 02, 2013

GWP Announces 75 Watt Constant Voltage LED Power Supply Availability

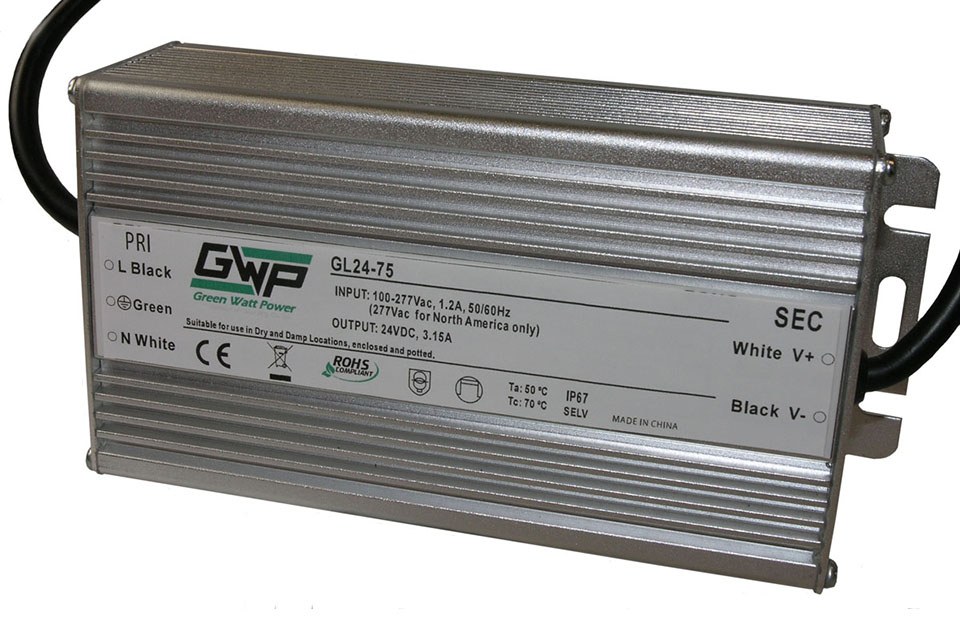

Green Watt Power, a division of Calex Mfg. Co., Inc. based out of Concord, California, announces the availability of the GLV75 constant voltage LED power supply. The GLV-24-75 is a 24 Volt output 3.15A fully encapsulated IP67 rated power supply, ideal for LED lighting applications requiring that voltage and current rating. The GLV-24-75 is protected by over voltage protection, short circuit protection with auto recovery, over temperature protection and backed by Green Watt Power’s five year warranty for years of reliable performance. The MTBF for the GLV75 is 200,000 hours.

The GLV-24-75 has a universal input range of 100 to 277VAC. The power factor is 0.95. The efficiency of the unit is 86% typical with a full load input current of 1.2A with a 110VAC input. The noise and ripple is 360mV peak to peak. Load regulation is 2%. The GLV-24-75 setup time is 3 seconds. Rise time is 200 milliseconds. The voltage range tolerance including setpoint tolerance, line regulation and load regulation is +/-5%.

The operating temperature range is -35 to +70ºC ambient. The storage temperature range of the GLV-24-75 is -40 to +85ºC ambient. The GLV75 case size is 8.98” x 2.83” x 1.73”. The unit weight is 0.4Kg. Units are available from stock to 10 weeks. Contact the factory for pricing. For more information on the GLV75 Series, go to http://www.greenwattpower.com/75CV.html or contact Green Watt Power at sales@greenwattpower.com
