iWatt’s New Digital LED Driver ICs Deliver Flicker-Free Dimming & Hot-Plug Support

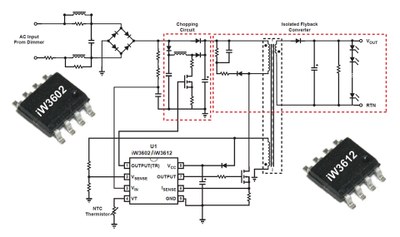

iWatt, Inc., a developer of energy-efficient digital power supply control integrated circuits (ICs) used in leading-edge power supplies, today announced two primary-side-regulated, leading- and trailing-edge-dimmable, AC/DC Digital PWM Controllers targeting 100V/230VAC offline LED lighting applications. Designed for isolated or non-isolated LED drivers used in incandescent replacement lamps including both space-constrained (GU10, MR16) and larger (A, PAR) types, the iW3612 (3W to 25W) and low-power iW3602 (3W to 10W) incorporate features to ensure long life, power efficiency, reduced size and component costs, and flicker-free compatibility with existing wall dimmers worldwide. Both LED driver ICs are pin compatible with the previous-generation iW3610, but offer wider dimmer compatibility and introduce new hot-plug support, where the user can swap the LED engine without recycling the input power for the LED driver.

iW36xx Common Features:
• Isolated AC/DC offline 100 Vac / 230 Vac LED driver
• Up to 10 W output power
• Line frequency ranges from 45 Hz to 66 Hz
• Intelligent wall dimmer detection
  o Leading-edge dimmer
  o Trailing-edge dimmer
  o No-dimmer detected
  o Unsupported dimmer
• Hybrid dimming scheme
• Wide dimming range from 1% up to 100%
• No visible flicker
• Resonant control to achieve high efficiency, 85% without dimmer
• Temperature compensated LED current
• mall size design
  o small size input bulk capacitor
  o small size output capacitor
  o smallest transformer
• Primary-side sensing eliminates the need for opto-isolator feedback and simplifies design
• Tight LED current regulation ± 5%
• Fast start-up, typically 10 μA start-up current
• Hot-plug LED module support
• Multiple protection features:
  o LED open circuit protection
  o Single-fault protection
  o Over-current protection
  o LED short circuit protection
  o Current sense resistor short circuit protection
  o Over-temperature protection

Worldwide conservation initiatives to replace existing incandescent bulbs with energy-efficient LEDs force those LEDs to address the installed base of dimmable-lighting switches. In iWatt’s LED driver ICs, intelligent digital algorithms automatically detect all types of dimmers or a lack thereof for seamless operation, including both leading-edge (TRIAC style) and trailing-edge dimmers. In the rare case of an unsupported dimmer, safe mode shuts it down. The devices allow smooth, flicker-free dimming from 1% to 100% with tight +5% LED current regulation which prevents flicker from noisy line voltage.

iWatt’s AC/DC power conversion ICs are unique in that they feature a digital feedback and control loop versus analog. This adaptive digital control technology – which is transparent to designers and requires no programming or GUI development – optimizes efficiency, simplifies printed circuit board (PCB) design, and eliminates components to reduce driver size and bill of materials (BOM). Precision primary-side-control technology eliminates the opto-coupler and secondary-side control circuit used in traditional isolated flyback designs. Built-in frequency jitter and quasi-resonant (or valley-mode) switching reduces EMI with over 6dB margin and over 85% efficiency, improving thermal management and reducing the EMI filter components necessary. Proprietary digital spread spectrum technology also makes for easy EMI design by automatically adjusting the device’s switching frequency in real-time response to varying line voltage.

The high switching frequency up to 200kHz enables designers to use smaller capacitors and transformers to optimize space. Additionally, designers may use a smaller heat sink because the high efficiency (85% or better) reduces thermal loss.

LEDs can operate for more than 50,000 hours, and some manufacturers even say 100,000. However, over time and at elevated operating temperatures, the opto-couplers and low-cost electrolytic capacitors in the driver circuitry become weak links in achieving long life. iWatt’s primary-side-control technology eliminates the opto-coupler, and coupled with low inrush current and low ripple current by design, lengthens the life of the LED driver assembly.

Comprehensive safety features include: LED open/short circuit protection, input over-voltage protection, and over-temperature thermal shutdown. An LED current de-rating at high temperatures also protects LEDs. The ICs enable system designers to exceed all safety, EMI, and regulatory standards, including the EN55015B, IEC61000-3-2, and Energy Star.

The chips come in a low-cost, thermally-enhanced SO-8 package with an exposed pad which allows lower die junction-to-PCB thermal resistance for increased reliability. Samples are available, with the iW3602 priced at $0.84 and the iW3612 at $0.98 in 1,000-piece quantities
