Products, Materials & Tools | Dec 07, 2016

uPowerTek Launches 75 W NFC Programmable LED Driver

To make smart lighting simple and reliable, uPowerTek recently released a new 75 W NFC programmable LED driver. The output current of the driver can be programed by a NFC programmer, touch free and fast. Compared with other programmable LED drivers, uPowerTek’s NFC programmable driver has several advantages.

Advantages:
•    Touch Free Programmable
•    Passive Programmable
•    Fast and Safety
•    Easy to operate
•    IP67 waterproof
•    Compact Size
•    UL Class P passed

Technical Features:
•    Supply Voltage: 90-305 Vac or 127-420 Vdc
•    Great Surge Immunity 10 kV
•    100,000 Hour Life @ Tc=75°C
•    5 Year Warranty @ Tc<=80°C
•    AirsetTM NFC Programmability
•    0-10V/PWM/Time/DALI (Optional) Dimmable
•    0.5 W Standby Power
•    12 V 300 mA Auxiliary Power to Power Controllers and Fans (Optional)
•    Input Over Voltage Protection (Optional)
•    Class II Model Available
•    UL Class P, Class 2
•    ENEC/CB/CCC SELV Output
•    Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384

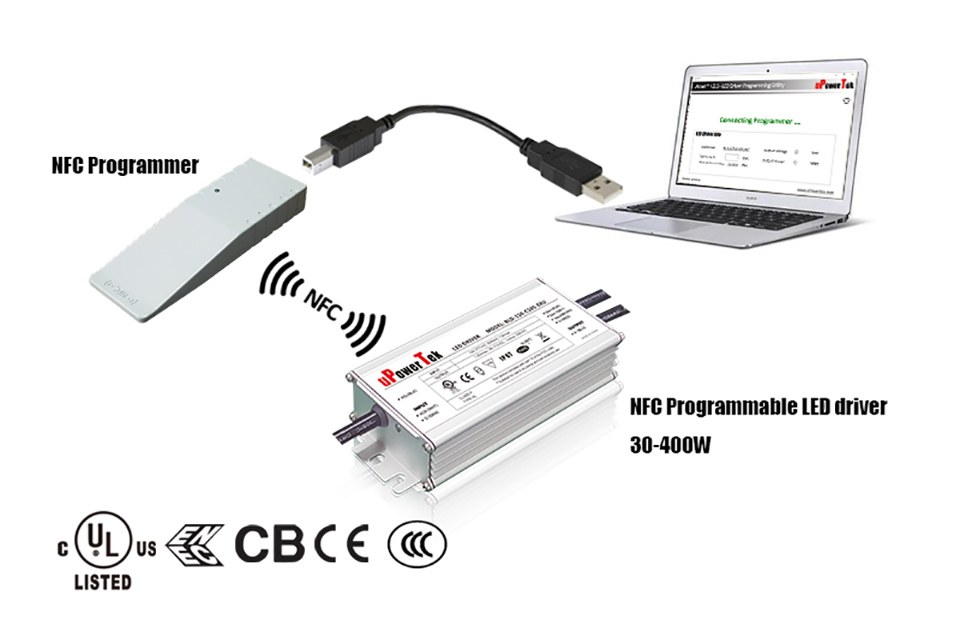

For programming the driver, users don’t need to connect wires. Connecting the programmer to the computer and get close enough to the driver is all that needs to be done. Then it’s finished in less than 1 second. This is the fastest programming time in the industry.

Besides the NFC programming function, there are also some additional features to mention. 3 models of the 75 W series are available to cover most of the popular output currents. Each of these models has a wide output current range.

Model Number

Output Power [W]

Output Voltage [Vdc]

Min
Settable   Current [mA]

Max
Settable   Current [mA]

Certification

BLD-075-C105-ERU

75

43-107

700

1050

UL/FCC/CB/
ENEC/CCC

BLD-075-C140-ERU

75

30-71

1050

1400

UL/FCC/CB/
ENEC/CCC

BLD-075-C280-ERU

75

16-54

2100

2800

UL/FCC/CB/
ENEC/CCC

About Upowertek:

Upowertek is a high-tech company which has been dedicated in high quality and intelligent LED drivers for several years. The company headquarter is located in Binjiang District, Hangzhou, which is a famous high-tech zone in China. The HQ consists of a sales, R&D and logistics center.
To learn more, please visit www.upowertek.com
