Products, Materials & Tools | Oct 13, 2015

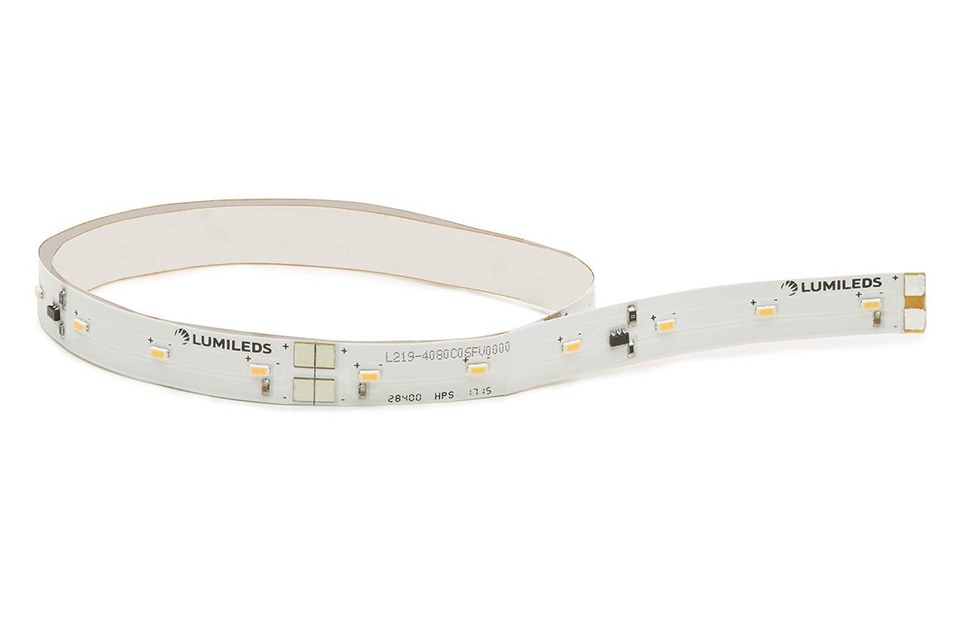

Lumileds Expands Matrix Platform with Luxeon XF-3014 CV Flexible LED Strips

Today Lumileds introduces the third member of the Matrix Platform family of integrated LED products, the Luxeon XF-3014 CV flexible LED strips. These 24V constant voltage LED strips distribute extremely uniform light across user-selectable lengths and require only a simple 24 V constant voltage driver.

Applications such as edge-lit lights, downlights, cove lighting and accent lighting benefit from the LED strips’ outstanding flux uniformity and color uniformity. The Luxeon XF-3014 CV strips are the industry’s first LED strips to achieve 2% light output attenuation over a 10 meter strip. “Our unmatched flux uniformity eliminates the possibility of spottiness or color variation from strip to strip and over long lengths,” said Andrew Cohen, Product Manager of the Matrix Platform family.

The Luxeon XF-3014 CV line of flexible LED strips provides 1000 lumens per meter and is offered as cuttable segments or with snap-in connectors. Specified at 2700 K, 3000 K, and 4000 K color temperature and a minimum CRI of 80, the strips are offered in three configurations for design flexibility using.

Luxeon XF-3014 CV Configurations:
•    6 LEDs per segments cuttable every 96 mm
•    6 LEDs, 96 mm segments with connectors
•    30 LED, 480 mm segments with connectors

Each 96 mm segment produces 112 lumens with 105 lm/W efficacy at 24V (3000 K).
The Matrix Platform speeds time to market by offering turnkey solutions using proven, reliable Luxeon LEDs integrated with components and connectors on flexible or rigid substrates. The Lumileds Matrix Platform simplifies customer supply chains with its in-house capabilities and uses the most reliable and high quality assembly practices.

The Luxeon XF-3014 CV line addresses the need for long lengths of LED flexible strips with uniform light output and simple 24V driver supportability that can be easily mounted with a pressure sensitive adhesive.

The outstanding flux uniformity of the Luxeon XF-3014 Constant Voltage (CV) strips will appeal to designers of LED cove lighting, accent lighting, and other applications requiring long, flexible strips of uniform light.

For more information on Luxeon XF-3014 CV, see www.lumileds.com/LUXEONXF-3014CV

About Lumileds:
Lumileds is the global leader in light engine technology. The company develops, manufactures and distributes groundbreaking LEDs and automotive lighting products that shatter the status quo and help customers gain and maintain a competitive edge. With a rich history of industry “firsts,” Lumileds is uniquely positioned to deliver lighting advancements well into the future by maintaining an unwavering focus on quality, innovation and reliability.
